Audio and Video Module Cable Replacement

WARNING: This page is about a different car, the 2012 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

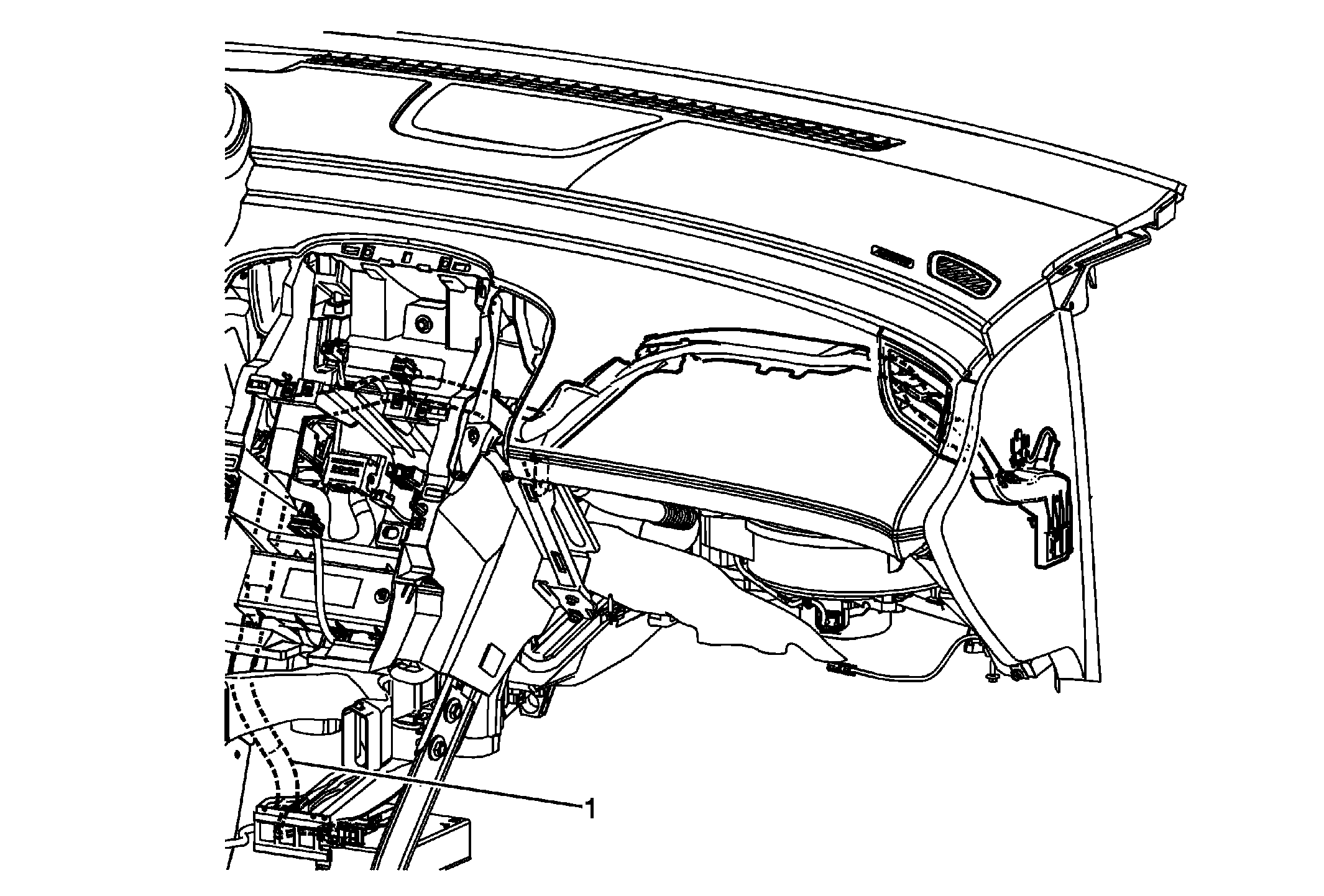

Fig 1: Audio And Video Module Cable

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the radio. Refer to Radio Replacement . Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement . Remove the front floor console. Refer to Front Floor Console Assembly Replacement .
1	Audio and Video Module Cable Procedure Disconnect the electrical connectors at each end of the audio and video module cable. If the cable is taped into the wiring harness then cut the ends off the old cable and route the new cable as close to the old one as possible using tie straps to secure the new cable.

Callout

Component Name

Preliminary Procedures

Remove the radio. Refer to Radio Replacement .
Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
Remove the front floor console. Refer to Front Floor Console Assembly Replacement .

Audio and Video Module Cable

Procedure

Disconnect the electrical connectors at each end of the audio and video module cable.
If the cable is taped into the wiring harness then cut the ends off the old cable and route the new cable as close to the old one as possible using tie straps to secure the new cable.
