Radio Antenna Module Replacement

WARNING: This page is about a different car, the 2012 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

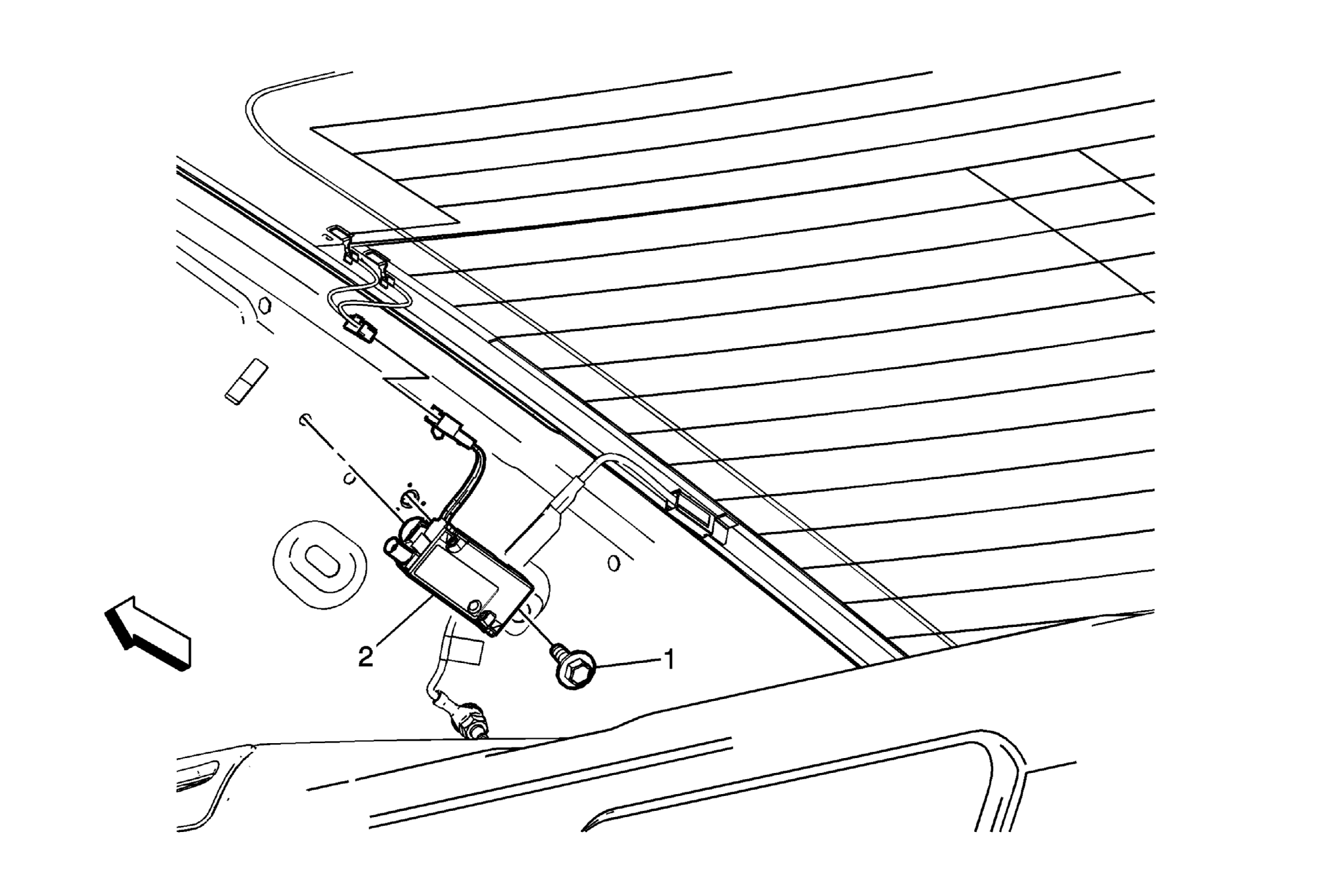

Fig 1: Radio Antenna Module
GM2211140Courtesy of GENERAL MOTORS COMPANY
Radio Antenna Module Replacement

Callout Component Name
Preliminary Procedure
Remove the right body lock pillar upper trim panel. Refer to Body Lock Pillar Upper Trim Panel Replacement .
1 Radio Antenna Module Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Radio Antenna Module
