Ignition Lock Key Transmitter Antenna Replacement - Floor Console

WARNING: This page is about a different car, the 2012 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

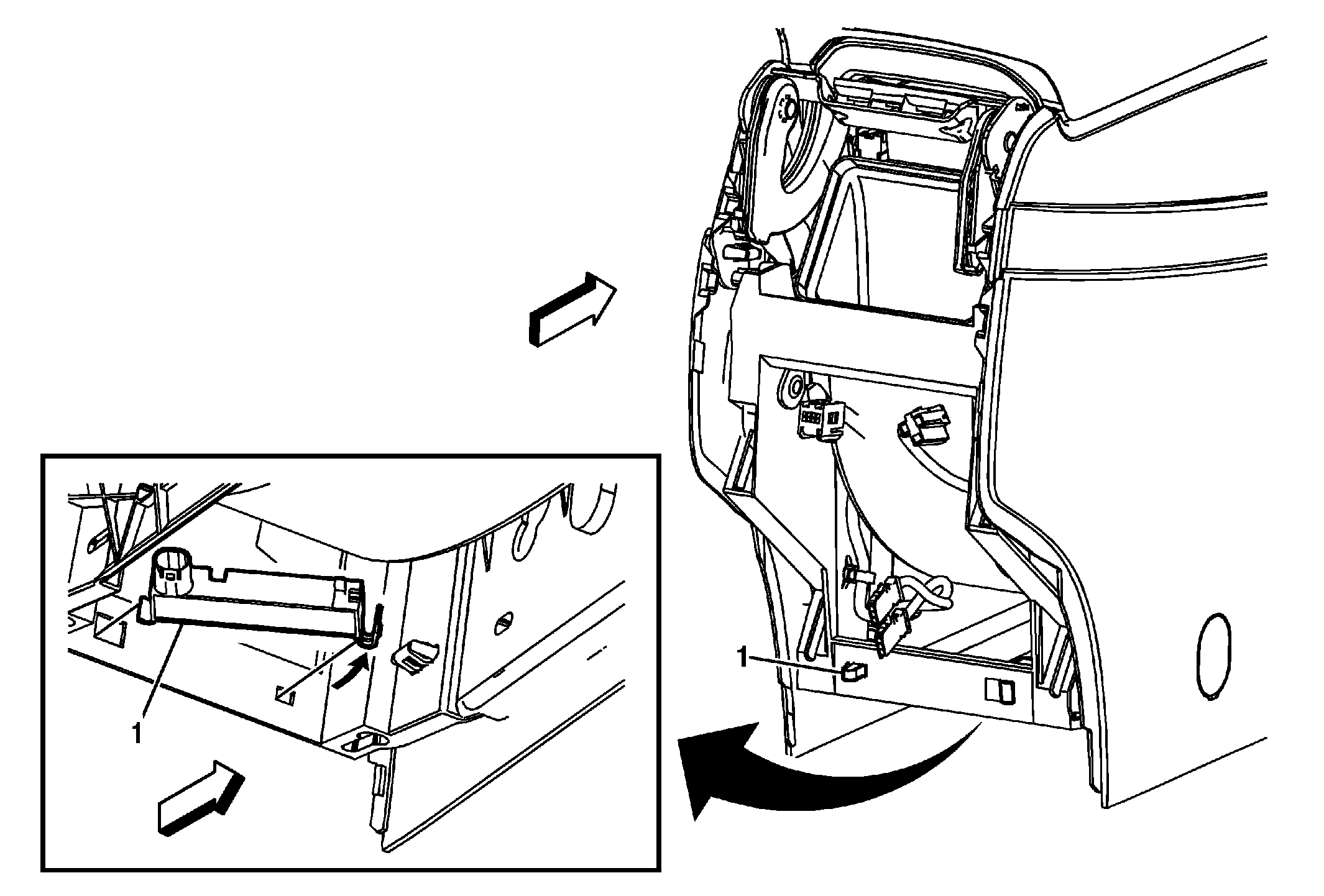

Fig 1: Ignition Lock Key Transmitter Antenna - Floor Console

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front floor console rear cover. Refer to Front Floor Console Rear Cover Replacement .
1	Ignition Lock Key Transmitter Antenna Procedure Disconnect the electrical connector. Unsnap to release the antenna.

Callout

Component Name

Preliminary Procedure
Remove the front floor console rear cover. Refer to Front Floor Console Rear Cover Replacement .

Ignition Lock Key Transmitter Antenna

Procedure

Disconnect the electrical connector.
Unsnap to release the antenna.
