Passive Entry, Passive Start Antenna
WARNING:
This page is about a different car, the 2012 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

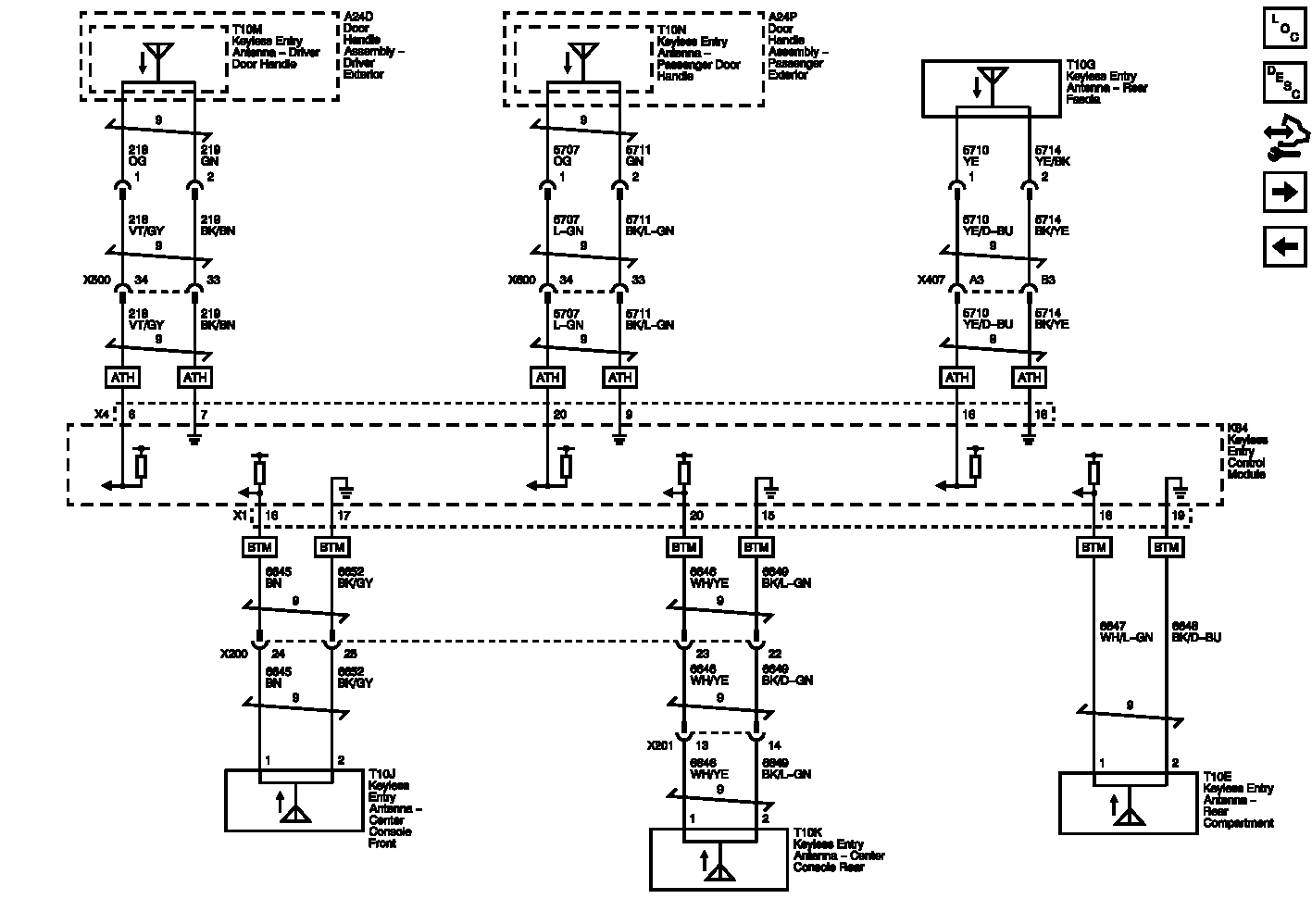

Fig 1: Passive Entry, Passive Start Antenna Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
