Rear Object Detection (UD7)

WARNING: This page is about a different car, the 2012 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

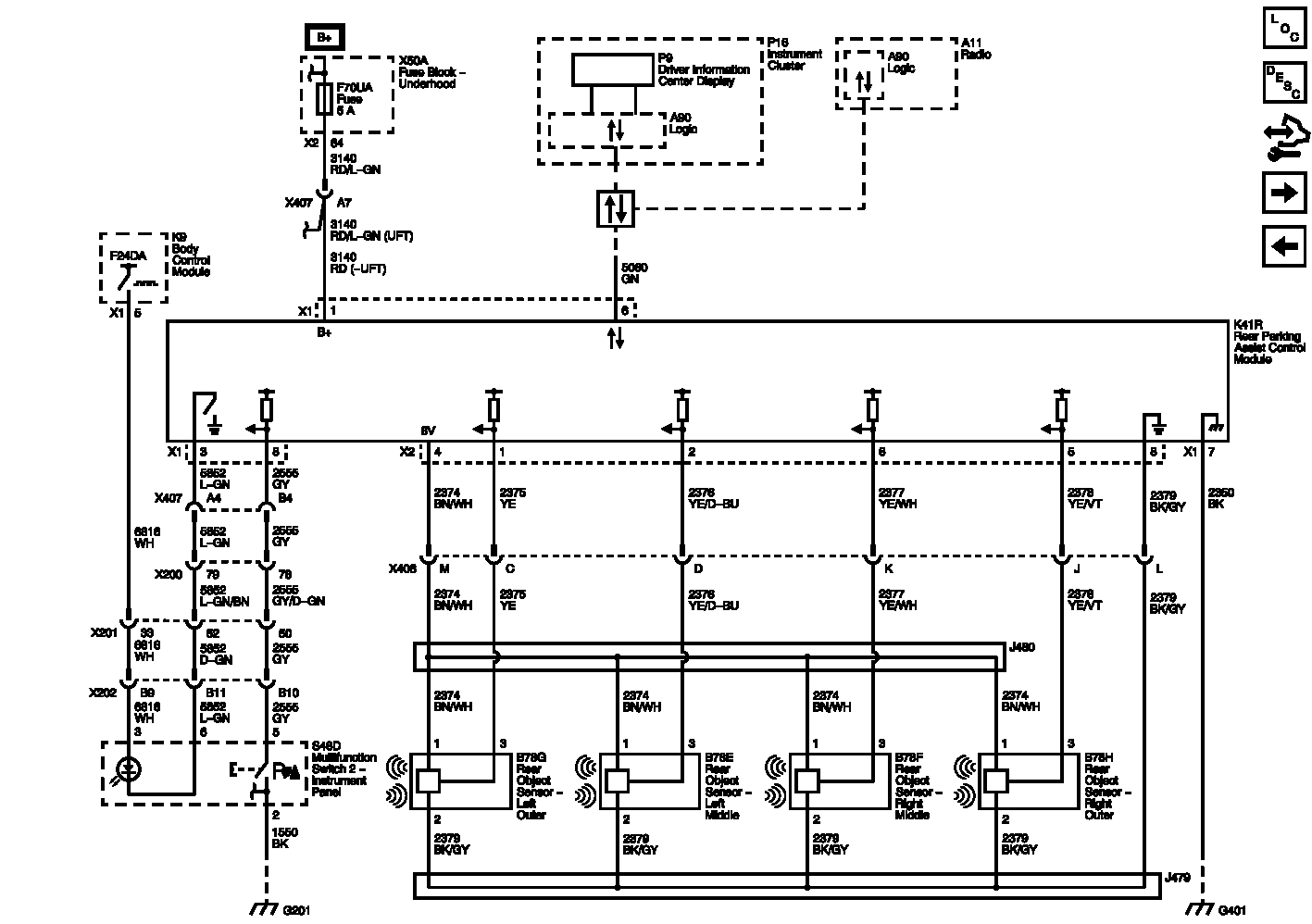

Fig 1: Rear Object Detection (UD7) Wiring Schematic
GM2578000Courtesy of GENERAL MOTORS COMPANY
