Compressor Control Valve Assembly: Locations

Powertrain Component Views

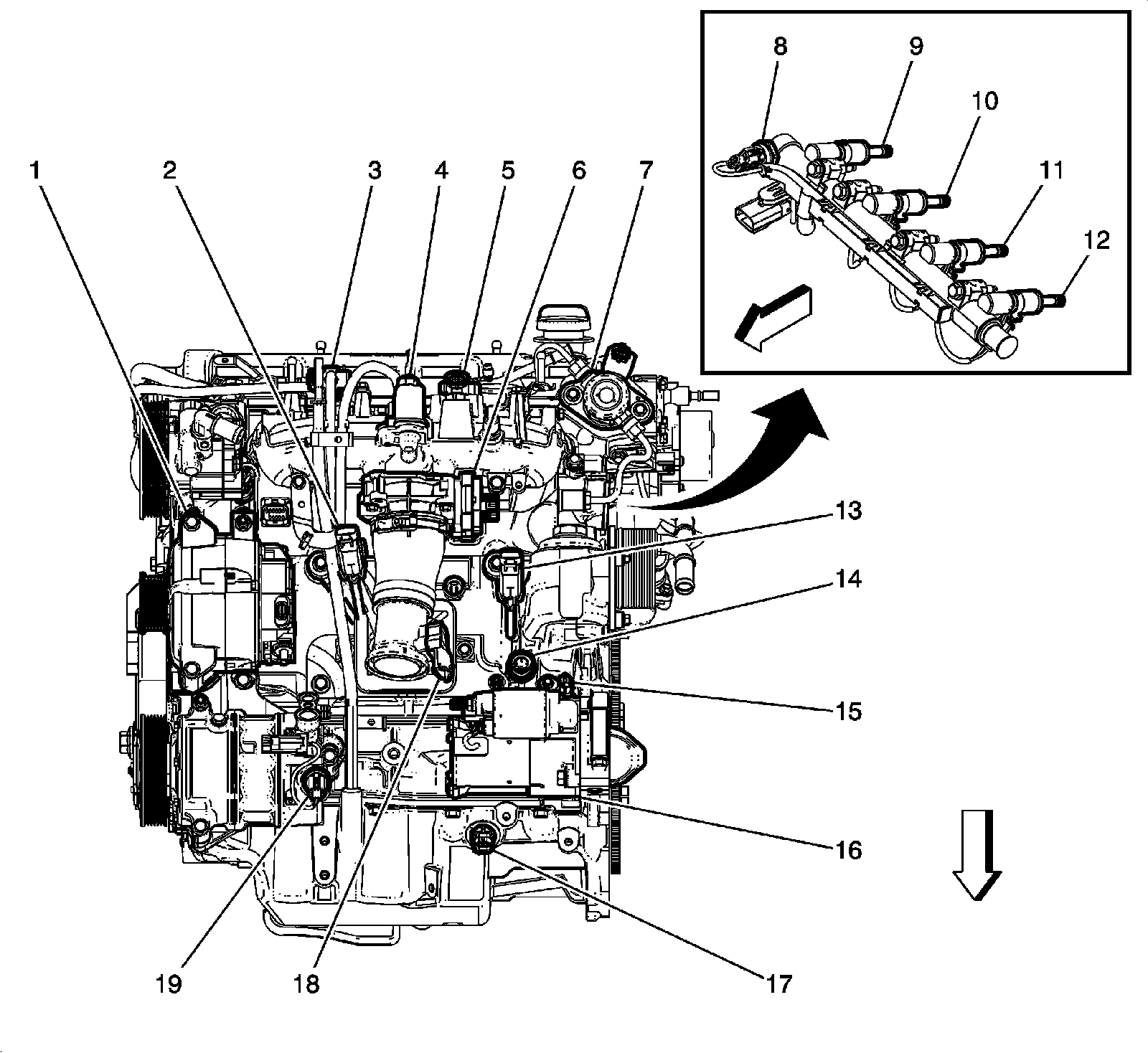

Front of Engine Components (LHU)





1 - G13 Generator

2 - B68A Knock Sensor 1

3 - Q40 Turbocharger Bypass Solenoid Valve

4 - Q12 Evaporative Emission Purge Solenoid Valve

5 - B74 Manifold Absolute Pressure Sensor

6 - Q38 Throttle Body

7 - G18 High Pressure Fuel Pump

8 - B47B Fuel Rail Pressure Sensor

9 - Q17A Fuel Injector 1

10 - Q17B Fuel Injector 2

11 - Q17C Fuel Injector 3

12 - Q17D Fuel Injector 4

13 - B68B Knock Sensor 2

14 - B37 Engine Oil Pressure Switch

15 - B26 Crankshaft Position Sensor

16 - M64 Starter Motor

17 - B35 Engine Oil Level Switch

18 - B111B Turbocharger Boost and Intake Temperature Sensor

19 - Q46 A/C Compressor Solenoid Valve
