Instrument Panel Multifunction Switch Replacement (Traction Control)

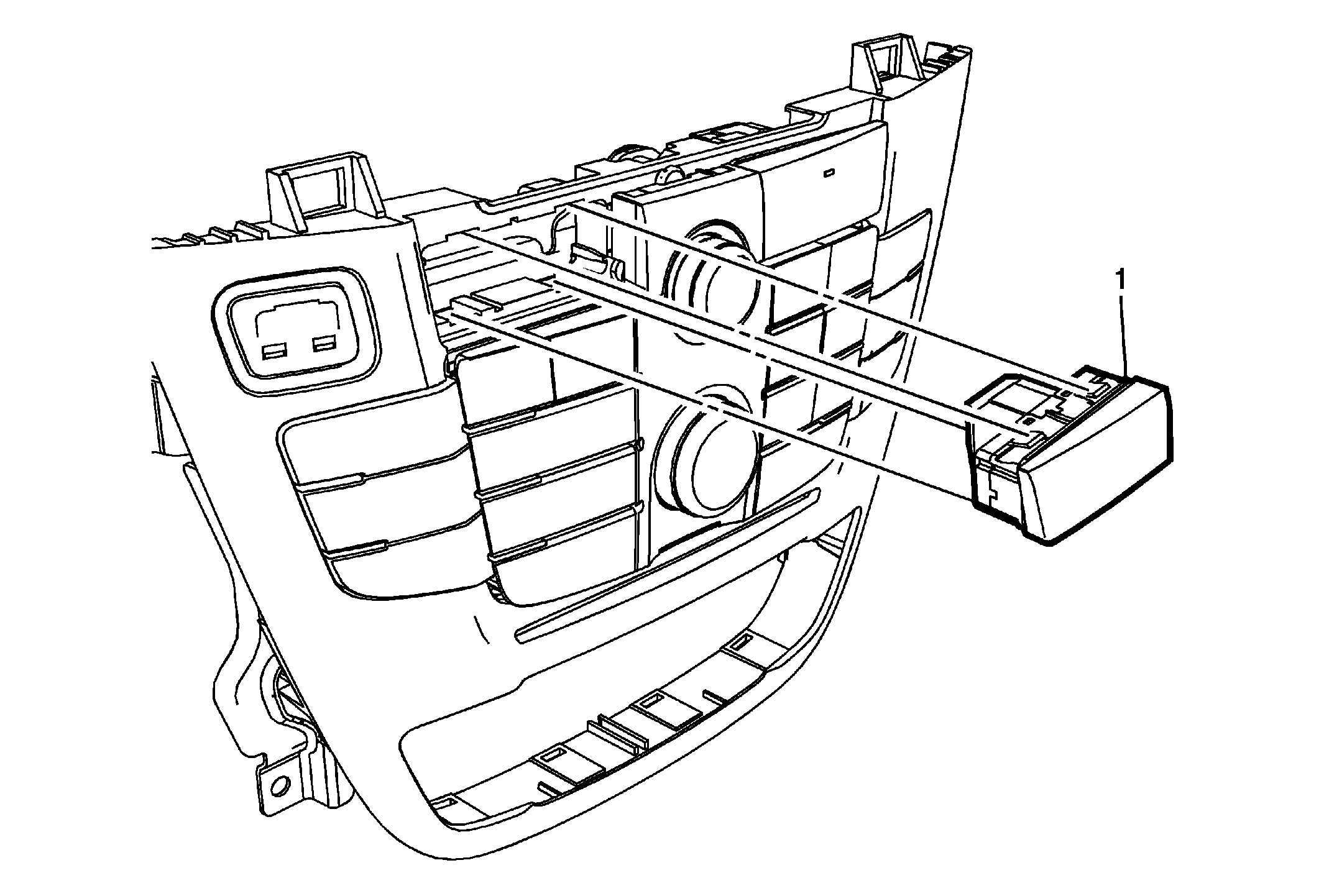

Fig 1: Instrument Panel Multifunction Switch

Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Multifunction Switch Replacement (Traction Control)

Callout	Component Name
Preliminary Procedure  Remove instrument panel lower center trim panel. Refer to Instrument Panel Lower Center Trim Panel Replacement .
1	Instrument Panel Multifunction Switch (Traction Control) Procedure  Depress tabs to remove the switch assembly.
