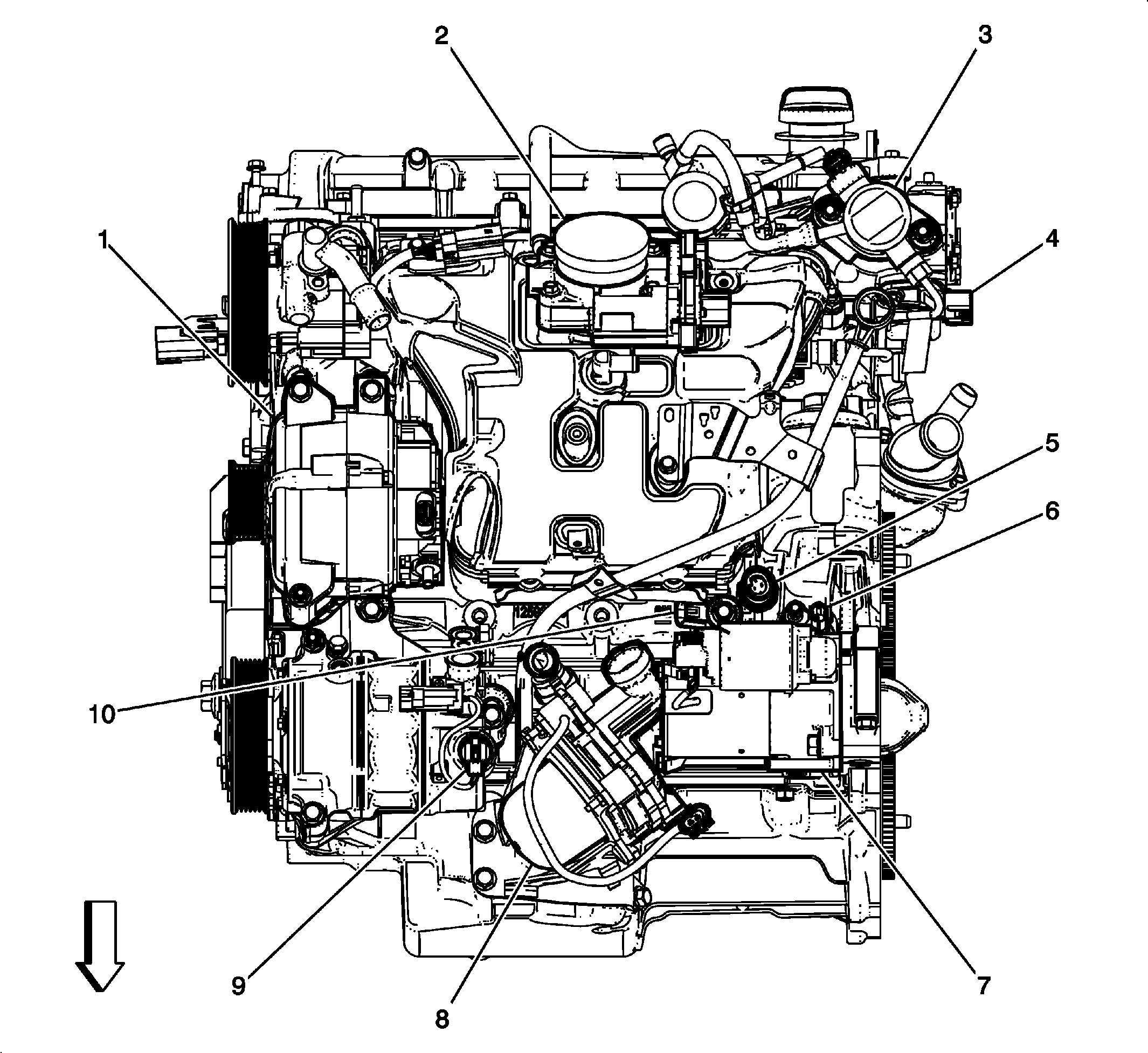

Front of Engine Components (LEA 1 of 2)
Front of Engine Components (LEA 1 of 2)
| Component Name | Callout |
|---|---|
| G13 Generator | 1 |
| Q38 Throttle Body | 2 |
| G18 High Pressure Fuel Pump | 3 |
| B23F Camshaft Position Sensor - Intake | 4 |
| B37 Engine Oil Pressure Switch | 5 |
| B68 Knock Sensor | 6 |
| B26 Crankshaft Position Sensor | 7 |
| M64 Starter Motor | 8 |
| G21 Secondary Air Injection Pump (NU6) | 9 |
| Q46 A/C Compressor Solenoid Valve | 10 |
