Balancer Chain Adjust Guide Replacement

Balancer Chain Adjust Guide Replacement

Removal Procedure

1. Remove the water pump and balance shaft chain tensioner. Refer to Water Pump and Balance Shaft Chain Tensioner Replacement Water Pump and Balance Shaft Chain Tensioner Replacement.

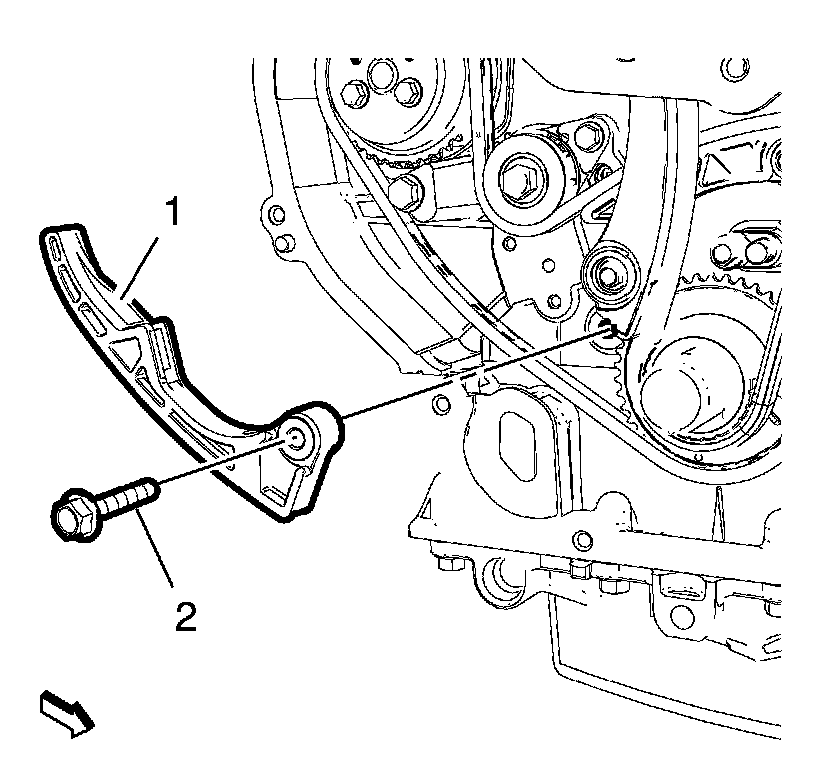

2. Remove the balancer chain guide bolt (2) and the balancer chain guide (1).

Installation Procedure





Caution:
Refer to Fastener Caution Fastener Caution.

1. Install the balancer chain guide (1) and the balancer chain guide bolt (2) and tighten to 12 Nm (106 lb in).

2. Install the water pump and balance shaft chain tensioner. Refer to Water Pump and Balance Shaft Chain Tensioner Replacement Water Pump and Balance Shaft Chain Tensioner Replacement.
