Balancer Chain Guide Replacement - Lower

Balancer Chain Guide Replacement - Lower

Removal Procedure

1. Remove the water pump and balance shaft chain tensioner. Refer to Water Pump and Balance Shaft Chain Tensioner Replacement Water Pump and Balance Shaft Chain Tensioner Replacement.

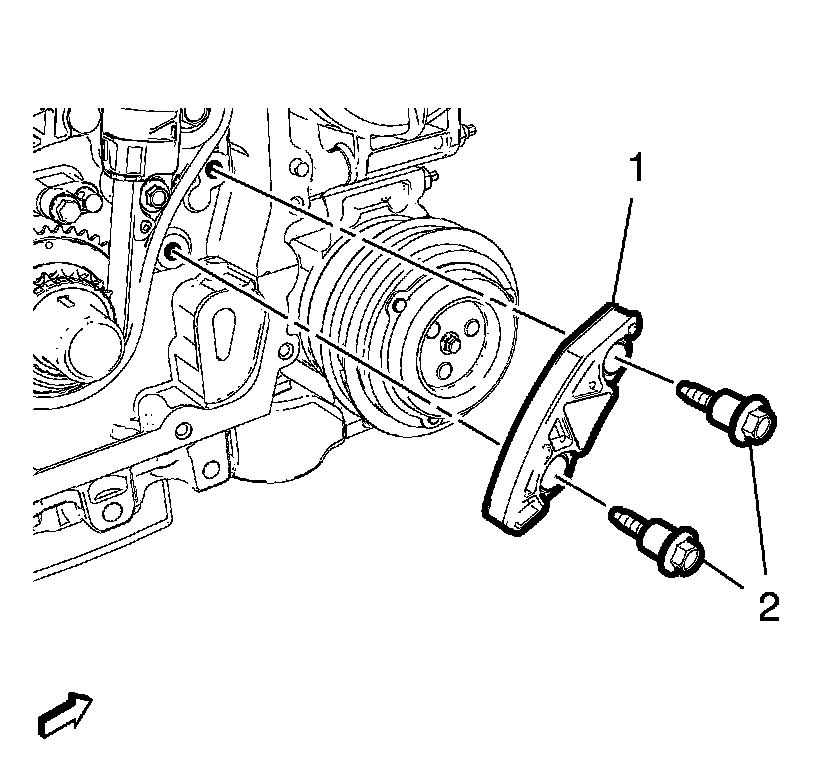

2. Remove the 2 balancer chain guide bolts (2) and the balancer chain guide (1).

Installation Procedure





Caution:
Refer to Fastener Caution Fastener Caution.

1. Install the balancer chain guide (1) and the 2 balancer chain guide bolts (2) and tighten to 12 Nm (106 lb in).

2. Install the water pump and balance shaft chain tensioner. Refer to Water Pump and Balance Shaft Chain Tensioner Replacement Water Pump and Balance Shaft Chain Tensioner Replacement.
