Hatch Latch Replacement

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the hatch and the related parts.
If the hatch latch doesn't unlock by using the keyless entry transmitter or unlocking the driver's door lock, remove the maintenance lid (A) from the hatch lower trim panel, then unlock the hatch latch by turning the lock lever (B) clockwise as shown. Open the hatch by pulling the hatch handle.

Fig 1: Identifying Maintenance Lid And Lock Lever

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Remove the hatch lower trim panel (see TRIM REMOVAL/INSTALLATION - HATCH AREAS ).

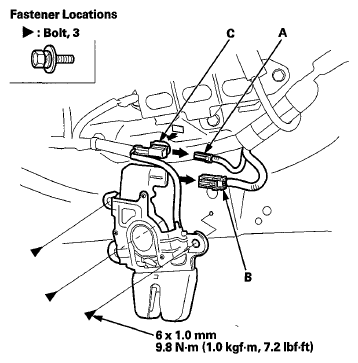

Disconnect the hatch latch switch connector (A), the hatch release actuator connector (B), and detach the clip (C), then remove the bolts securing the hatch latch from the hatch.

Fig 2: Hatch Latch Switch Connector, Hatch Release Actuator Connector And Clip With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the hatch latch in the reverse order of removal, and note these items:
- Make sure the connectors are plugged in properly.
- Make sure the hatch opens properly and locks securely.
