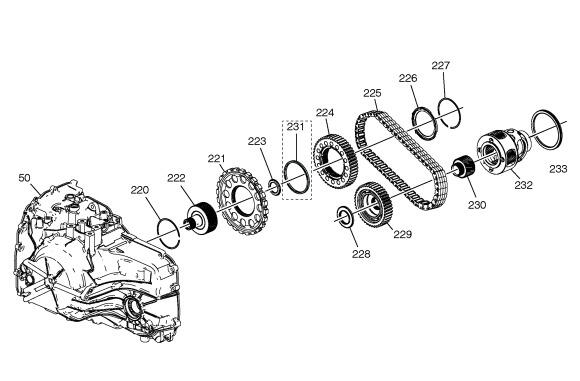

Drive Link Assembly
| Callout | Component Name |
|---|---|
| 50 | A/Trans Case |
| 220 | Park Gear Retainer Ring |
| 221 | Park Gear |
| 222 | Output Carrier Transfer Drive Gear Hub |
| 223 | Drive Sprocket Bearing Assembly |
| 224 | Drive Sprocket |
| 225 | Drive Link Assembly |
| 226 | Drive Sprocket Thrust Washer |
| 227 | Drive Sprocket Retainer Ring |
| 228 | Driven Sprocket Bearing Assembly |
| 229 | Driven Sprocket |
| 230 | Final Drive Sun Gear |
| 232 | Differential Carrier Assembly |
| 233 | Front Differential Carrier Bearing Assembly |
