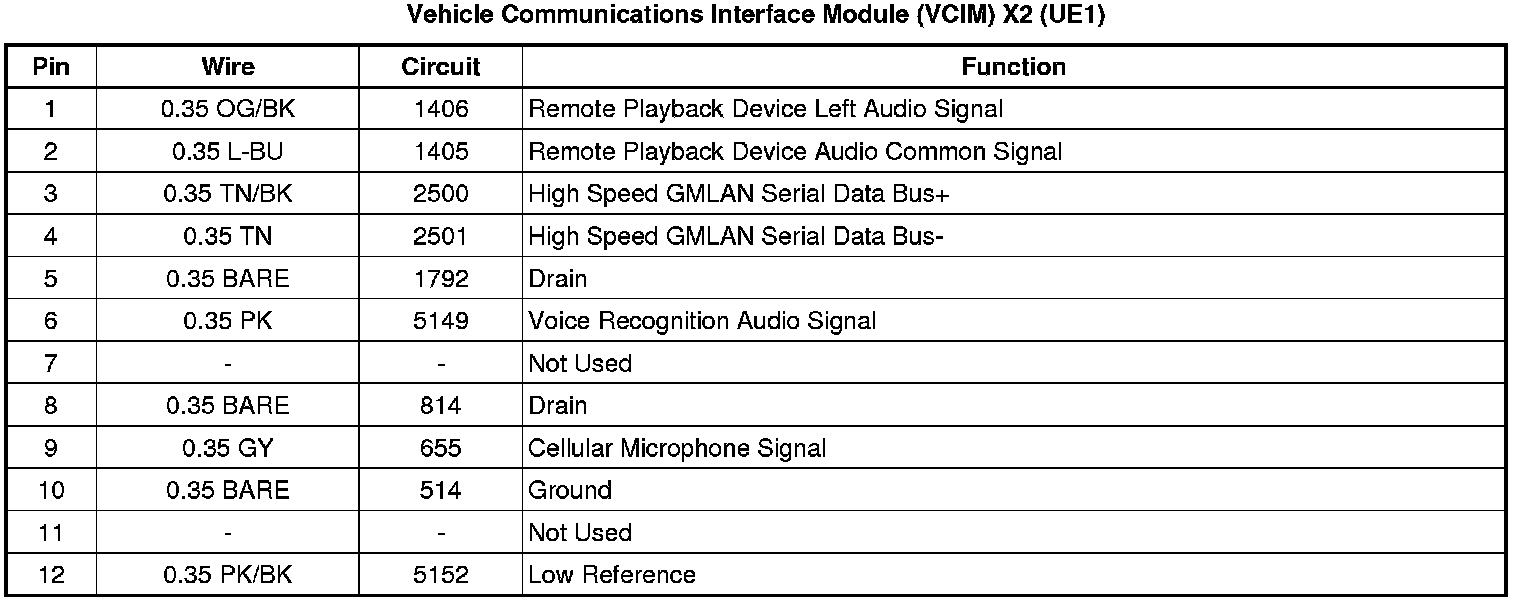

Vehicle Communications Interface Module (VCIM) X2 (UE1)

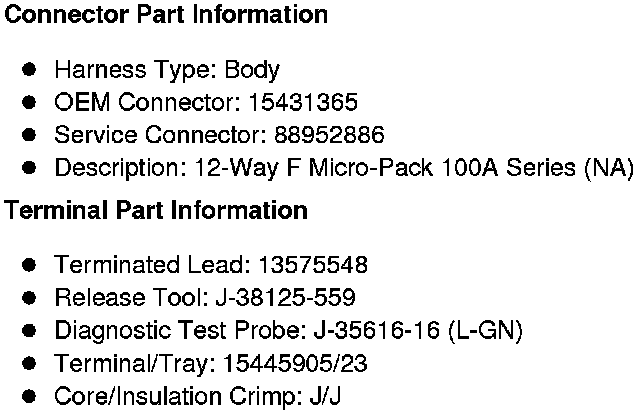

Component Connector End Views
Vehicle Communications Interface Module (VCIM) X2 (UE1)
