Removal Procedure

  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Remove the battery tray. Refer to Battery Tray Replacement .

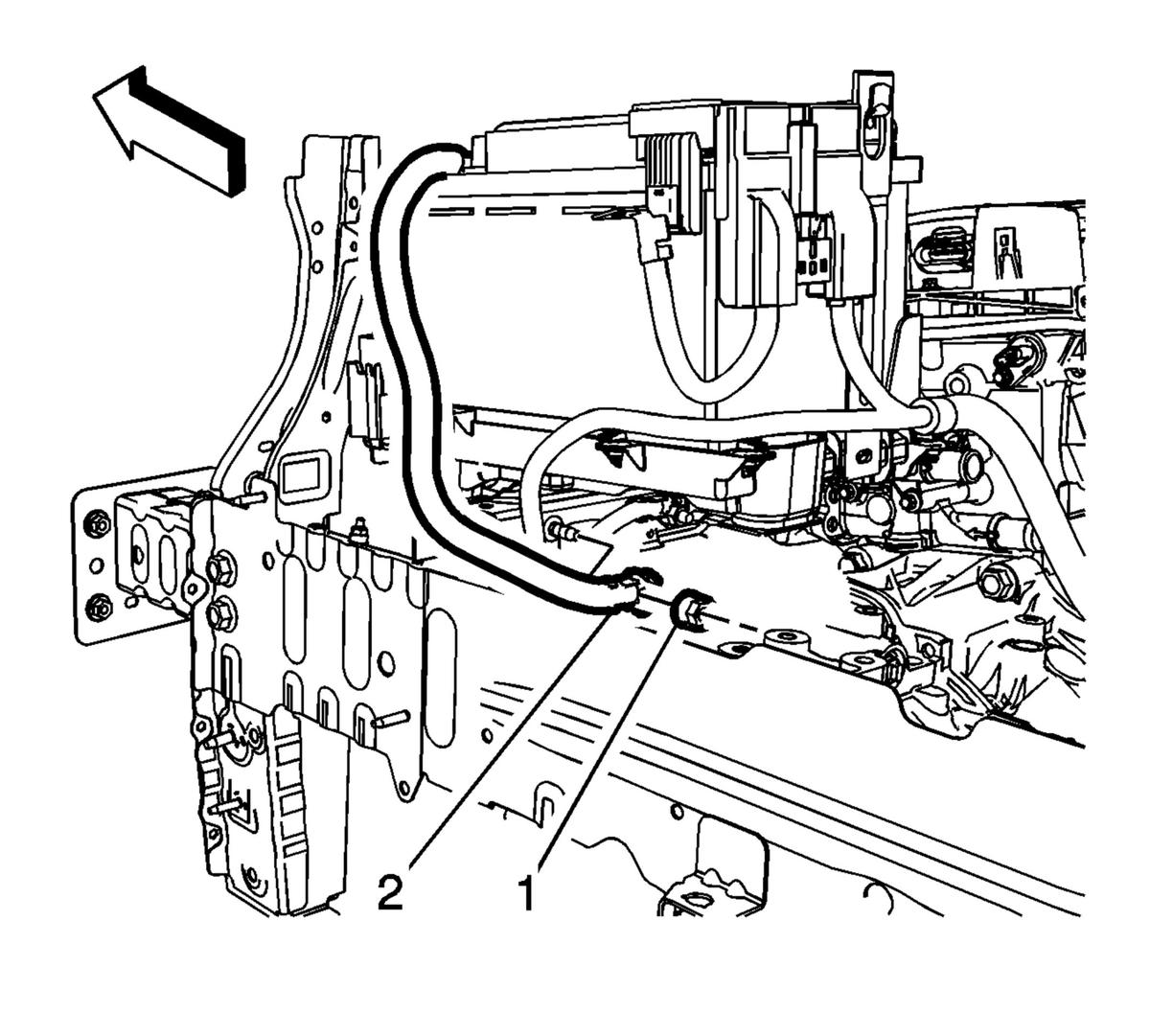

    3. Fig 1: Battery Ground Cable And Fastener
    GM2773967Courtesy of GENERAL MOTORS COMPANY
  3. Remove the battery ground cable fastener (1).
  4. Remove the battery negative cable (2).

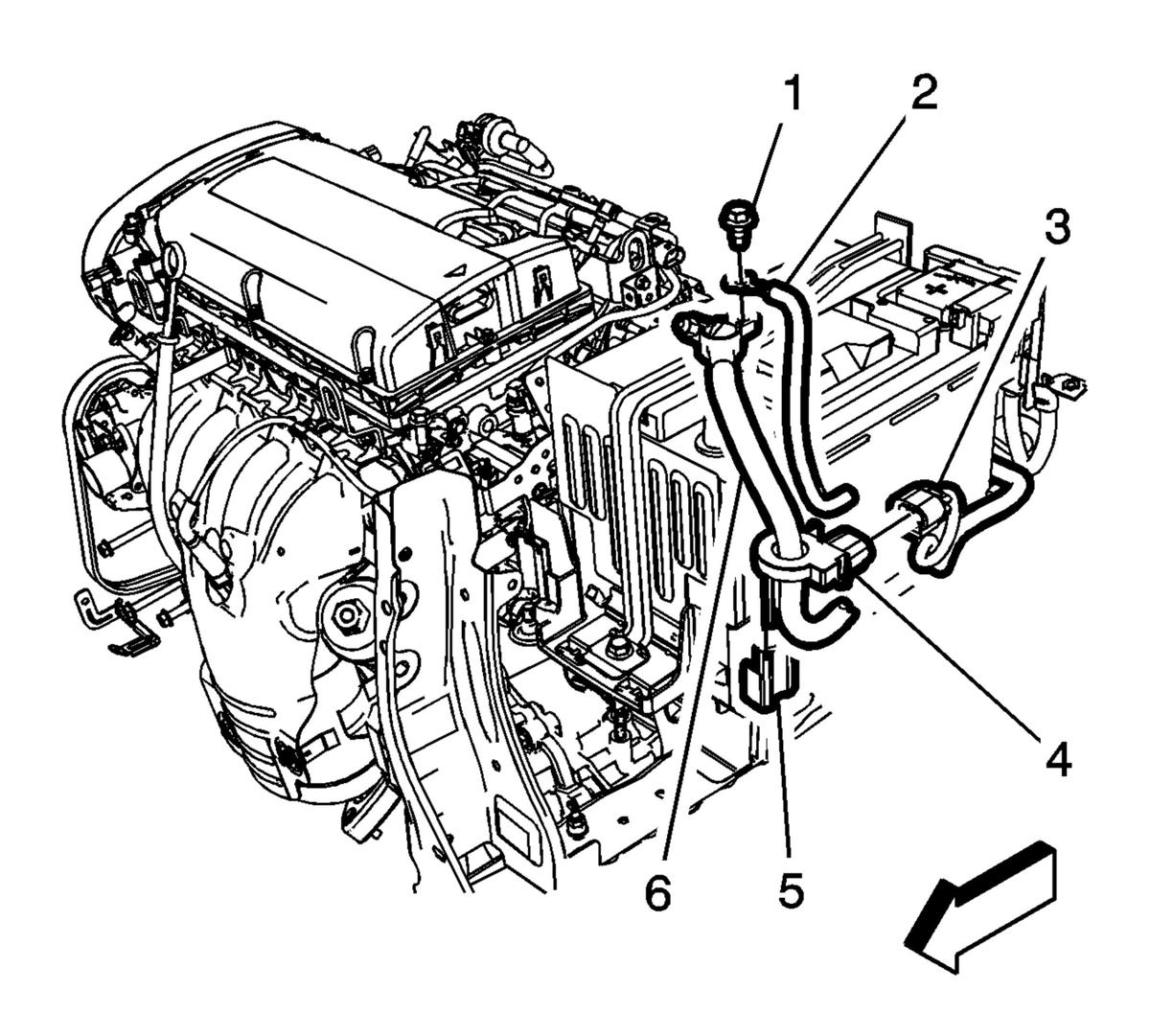

    5. Fig 2: Wiring Harness Current Sensor Connector
    GM2773965Courtesy of GENERAL MOTORS COMPANY
  5. Disconnect the wiring harness current sensor connector (3).
  6. Remove the body harness ground cable fastener (1) and the body harness ground cable (2), from the battery negative cable (6).
  7. Remove the battery negative cable (6).
    8. Fig 3: Battery Negative Cable And Current Sensor
    GM2027819Courtesy of GENERAL MOTORS COMPANY
  8. Remove the current sensor (2) from the battery negative cable (1).
