Front Of Instrument Panel (AT)

Items
1: P16 Instrument Cluster P16 Instrument Cluster
2: P9 Driver Information Center Display P9 Driver Information Center Display
3: B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor
4: P17 Info Display Module P17 Info Display Module
5: P14 Passenger Air Bag Disable Indicator (LHD) P14 Passenger Air Bag Disable Indicator
6: P9 Driver Information Center Display P9 Driver Information Center Display
7: X83 Auxiliary Audio Input (UH7) X83 Auxlliary Audio Input
8: A11 Radio A11 Radio X1 A11 Radio X2
9: K73 Telematics Communication Interface Control Module (UE3) K73 Telematics Communication Interface Control Module
10: S40 Passenger Air Bag Disable Switch S40 Passenger Air Bag Disable Switch
11: E1H Accent Lamp - Right Instrument Panel E1H Accent Lamp - Right Instrument Panel (C93)
13: A26 HVAC Controls A26 Hvac Controls
14: X83 Auxiliary Audio Input (UH7) X83 Auxlliary Audio Input
15: S3 Transmission Shift Lever (MH9) S3 Transmission Shift Lever
16: P2 Transmission Shift Lever Position Indicator (MH8) P2 Transmission Shift Lever Position Indicator
17: S3 Transmission Shift Lever (MH9) S3 Transmission Shift Lever
18: X80D Accessory Power Receptacle - Center Console Compartment
19: S48E Multifunction Switch - Center Console S48E Multifunction Switch - Center Console X1 S48E Multifunction Switch - Center Console X2
20: S48E Multifunction Switch - Center Console S48E Multifunction Switch - Center Console X1 S48E Multifunction Switch - Center Console X2
21: S30 Headlamp Switch S30 Headlamp Switch
22: E1G Accent Lamp - Left Instrument Panel E1G Accent Lamp - Left Instrument Panel (C93)
23: K9 Body Control Module K9 Body Control Module X1 K9 Body Control Module X2 K9 Body Control Module X3 K9 Body Control Module X4 K9 Body Control Module X5 K9 Body Control Module X6 K9 Body Control Module X7

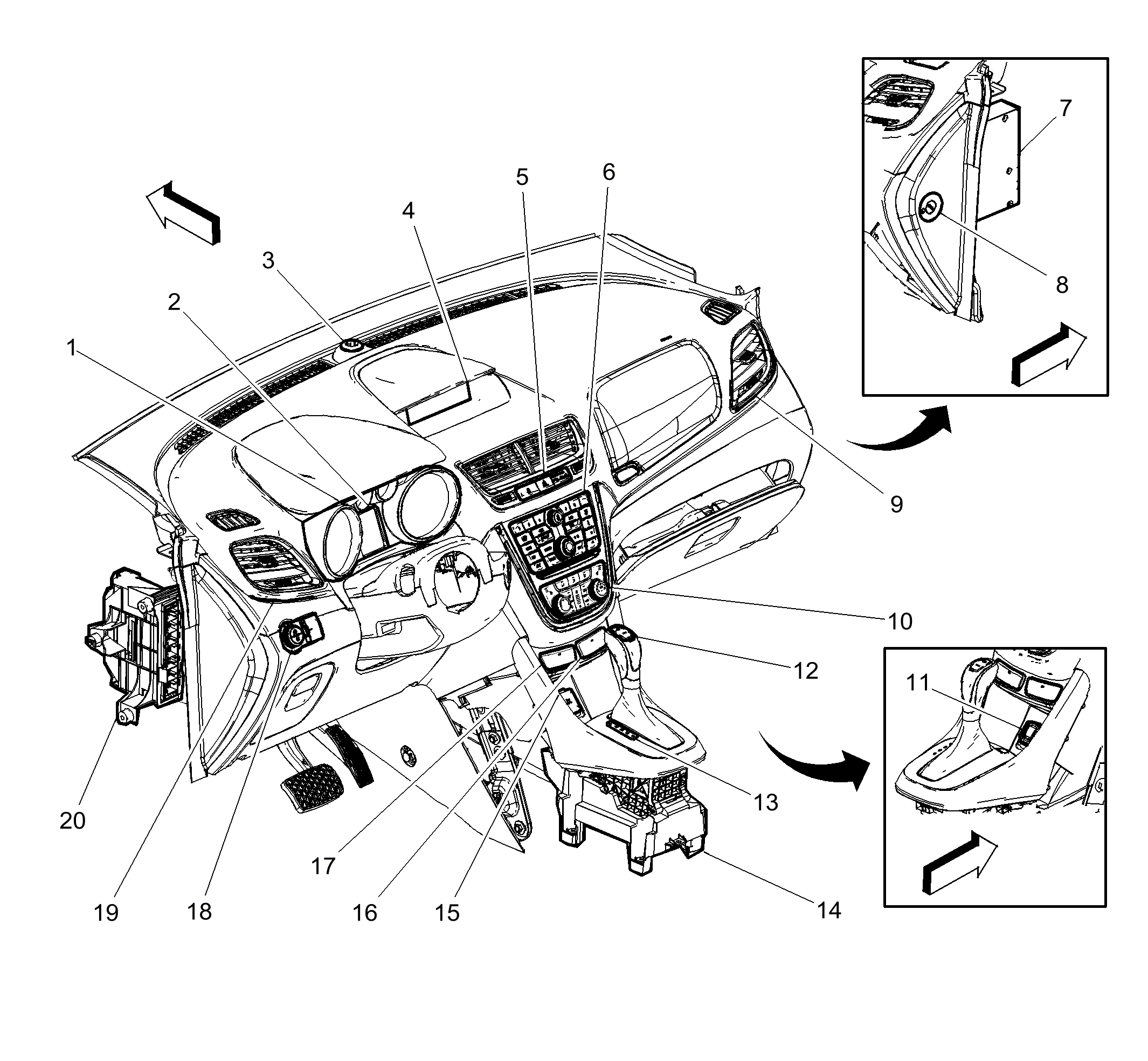

Fig 1: Front Of Instrument Panel (AT)

Courtesy of GENERAL MOTORS COMPANY
