Right Side and Rear Passenger Compartment Components

Passenger Compartment/Roof Component Views

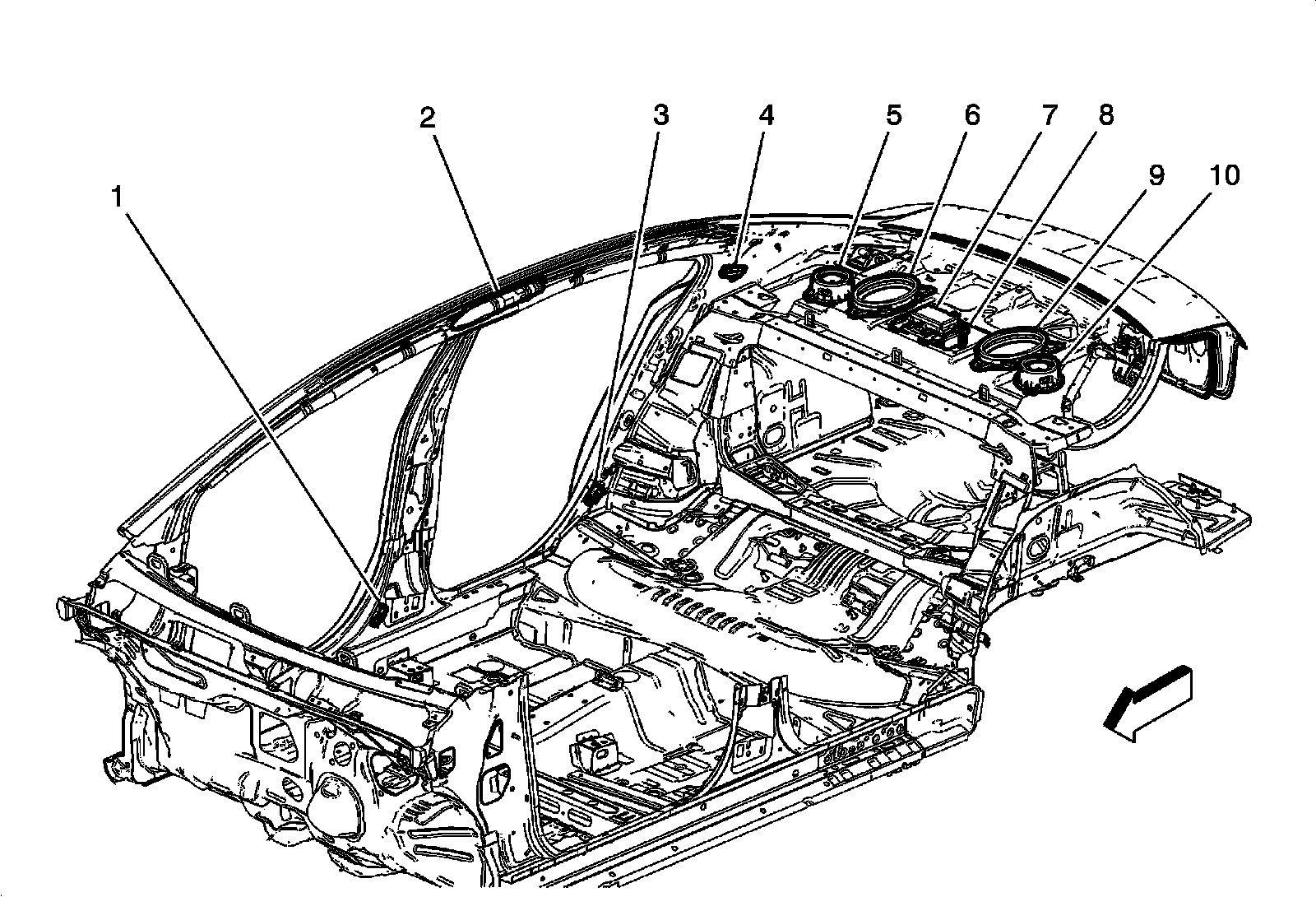

Right Side and Rear Passenger Compartment Components





1 - B63RF Side Impact Sensor - Right Front

2 - F105R Roof Rail Air Bag - Right

3 - B63RR Side Impact Sensor - Right Rear (AW7)

4 - K46 Radio Antenna Module

5 - P19AA Speaker - Right Subwoofer (UQA)

6 - P19AK Speaker - Right Rear Window Shelf (UQA)

7 - C3 Telematics Communication Interface Control Module Battery (UE1)

8 - K73 Telematics Communication Interface Control Module (UE1)

9 - P19AJ Speaker - Left Rear Window Shelf (UQA)

10 - P19N Speaker - Left Subwoofer (UQA)
