Radio Control Assembly Replacement
WARNING: This page is about a different car, the 2010 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

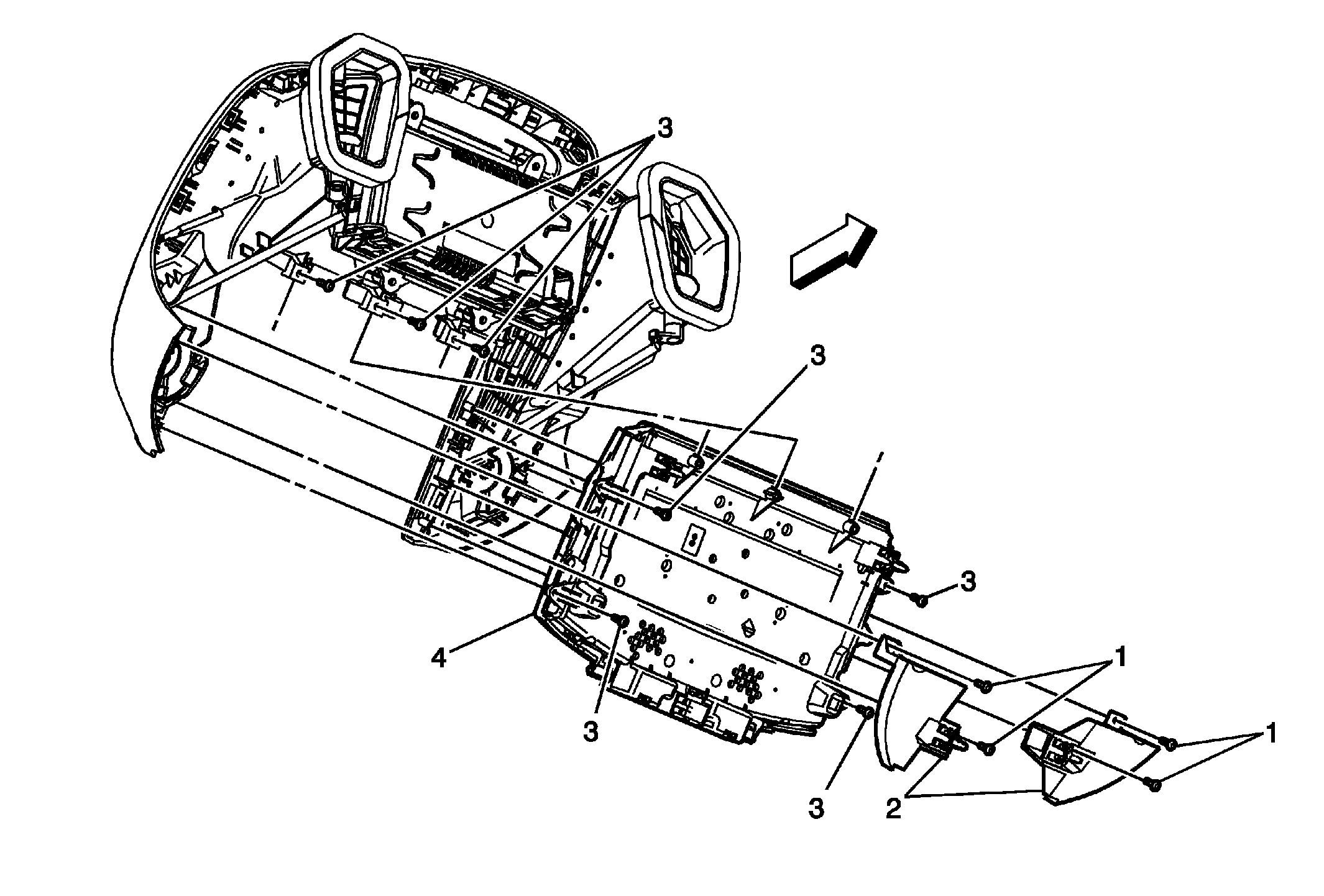

| Callout | Component Name |
|---|---|
| Procedure: Remove the instrument panel upper center trim panel. Refer to Instrument Panel Upper Center Trim Panel Replacement |
|
| 1 | Instrument Panel Accessory Bezel Fastener (Qty: 4 ) |
| 2 | Instrument Panel Lower Trim Panel |
| 3 | Radio Control Fastener (Qty: 7) |
| 4 | Radio Control Assembly |
