Installation Procedure

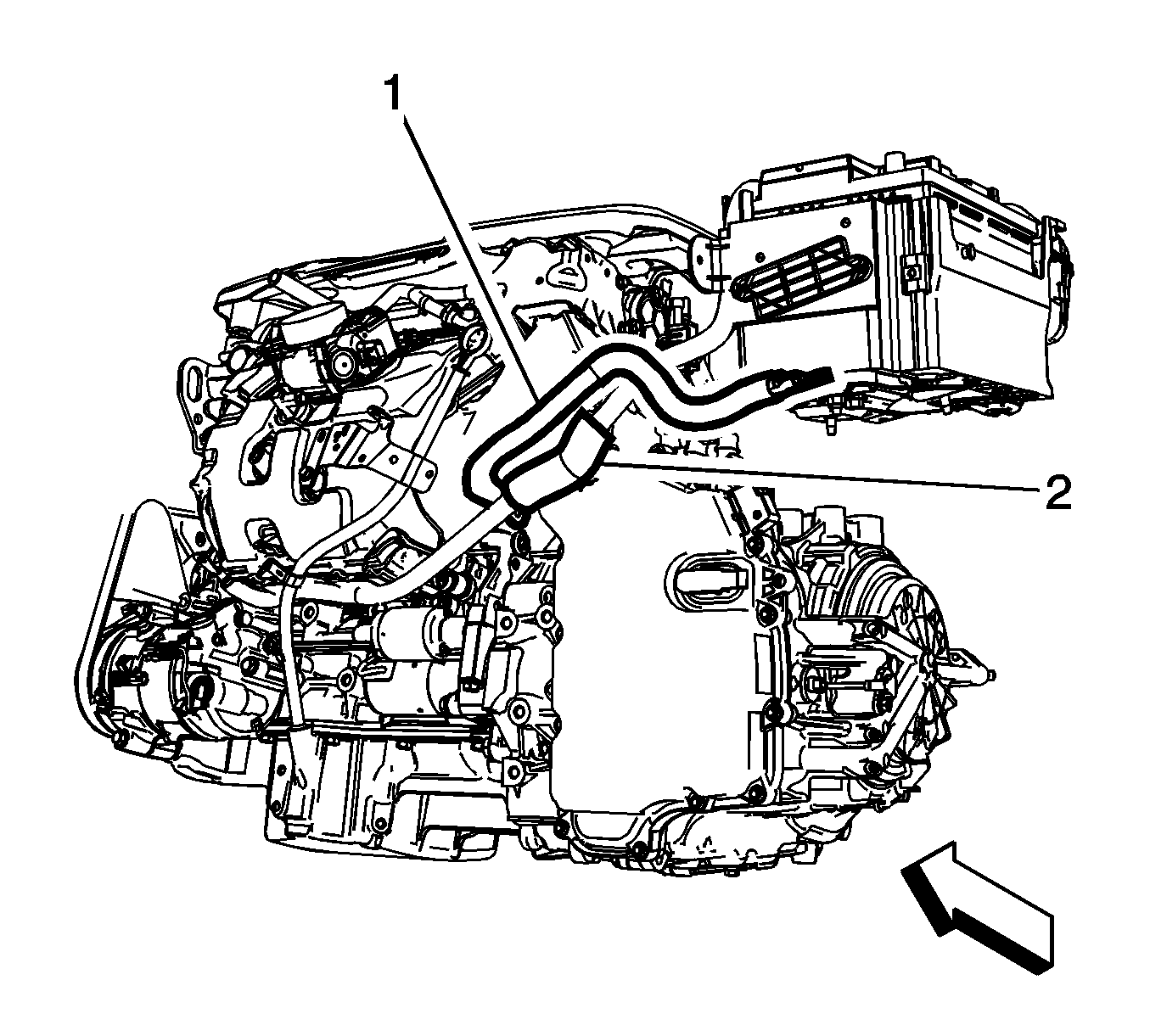

    Fig 1: Battery Negative Extension Cable And Negative Cable Conduit
    GM2690806Courtesy of GENERAL MOTORS COMPANY
  1. Install the battery negative extension cable (1) into the battery positive and negative cable conduit (2).

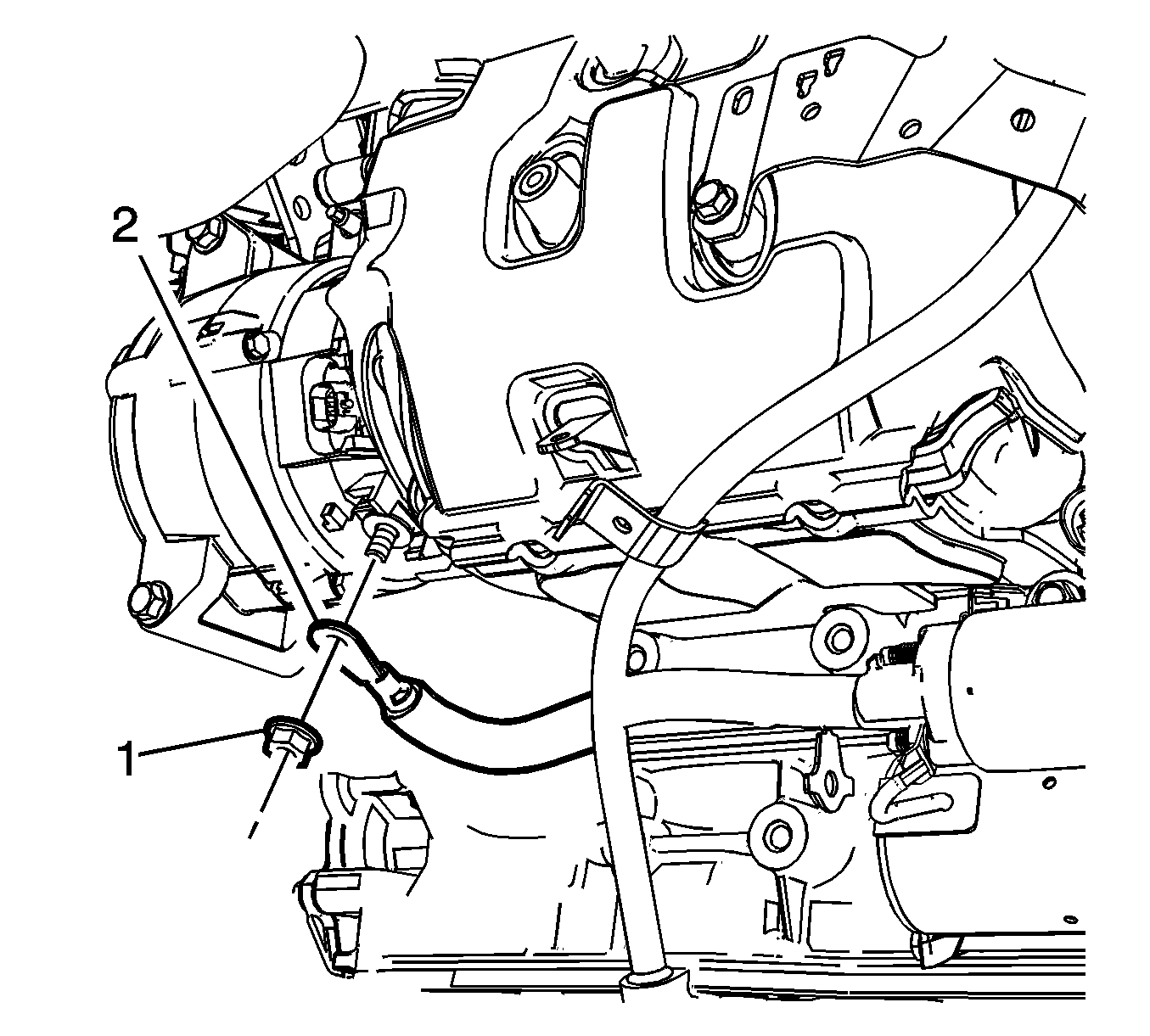

    2. Fig 2: Generator Fastener And Battery Positive Terminal
    GM2680837Courtesy of GENERAL MOTORS COMPANY
  2. Install the battery positive cable terminal (2) and fastener (1) to the back of the generator. Tighten to 15 N.m (11 lb ft).

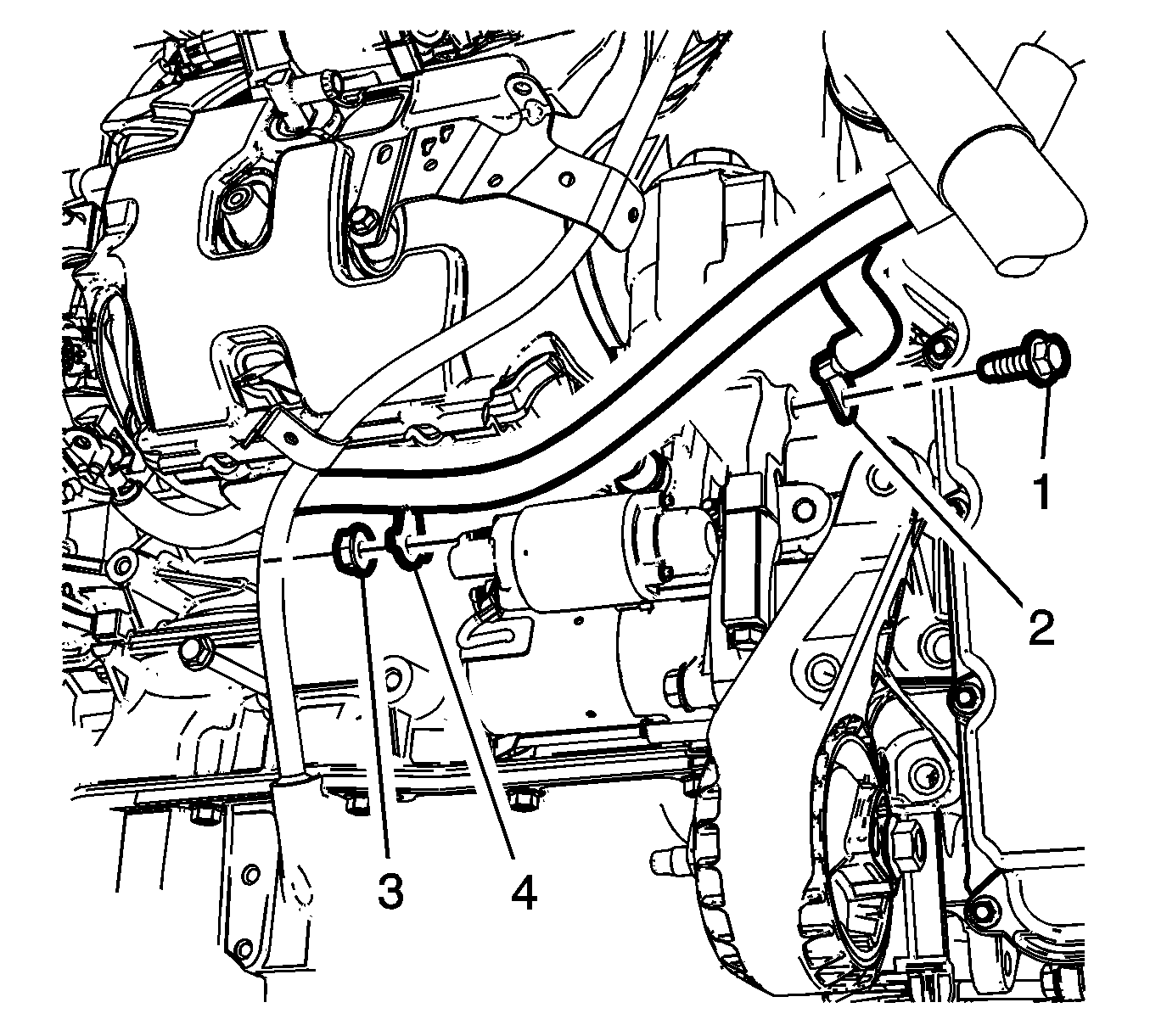

    3. Fig 3: Battery Positive Cable Terminal And Fastener
    GM2680835Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Install the battery negative ground terminal (2) to the engine block and tighten the fastener (1) to 25 N.m (18 lb ft).

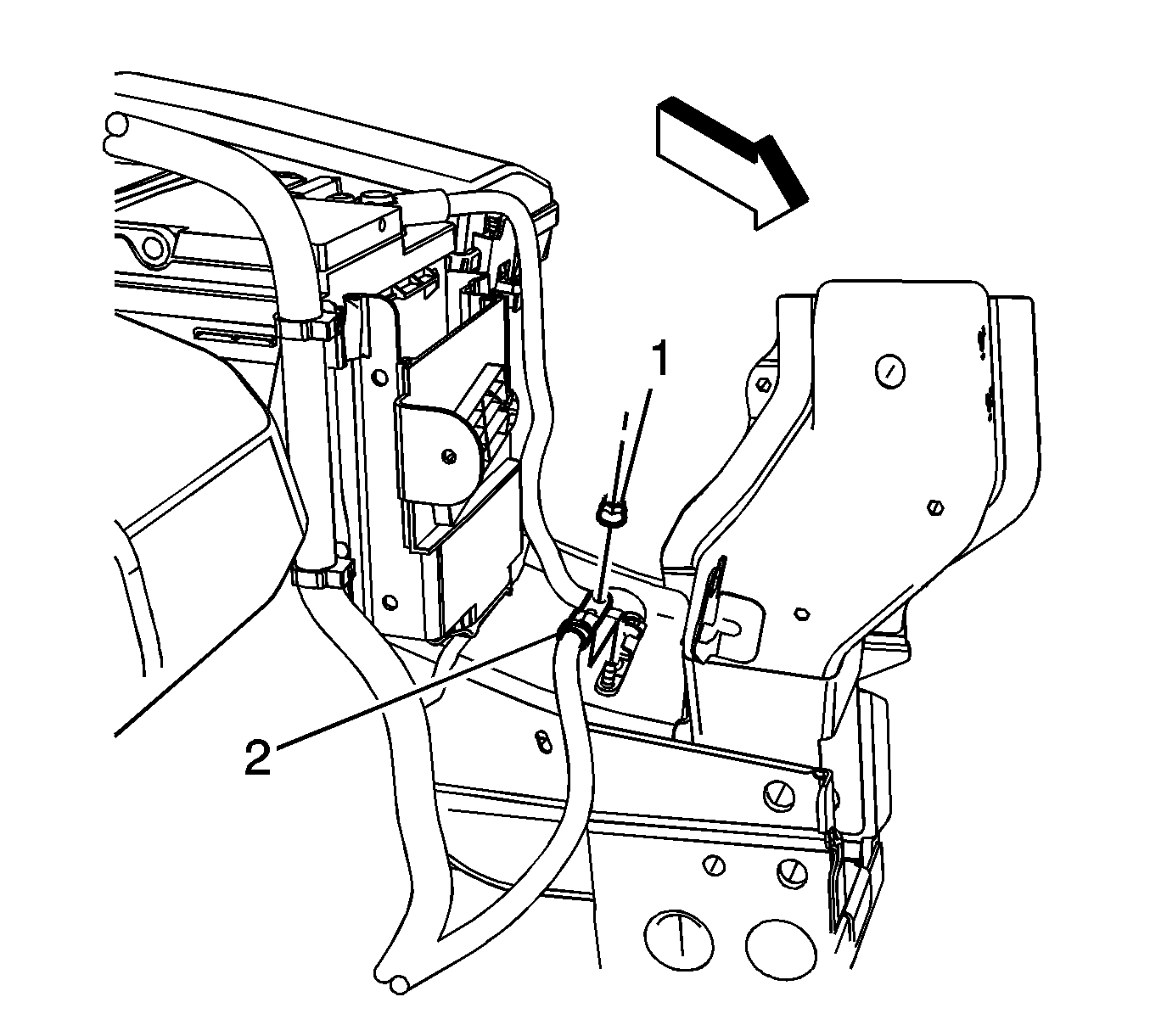

    4. Fig 4: Battery Negative Nut & Terminal
    GM2202529Courtesy of GENERAL MOTORS COMPANY
  4. Install the battery negative extension cable terminal (2) and fastener (1) to the left front frame rail. Tighten to 25 N.m (18 lb ft).
