Behind Upper Left Side of Instrument Panel Components

Behind Upper Left Side of Instrument Panel Components

Items
1:  P16 Instrument Cluster P16 Instrument Cluster
2:  S30 Headlamp Switch S30 Headlamp Switch

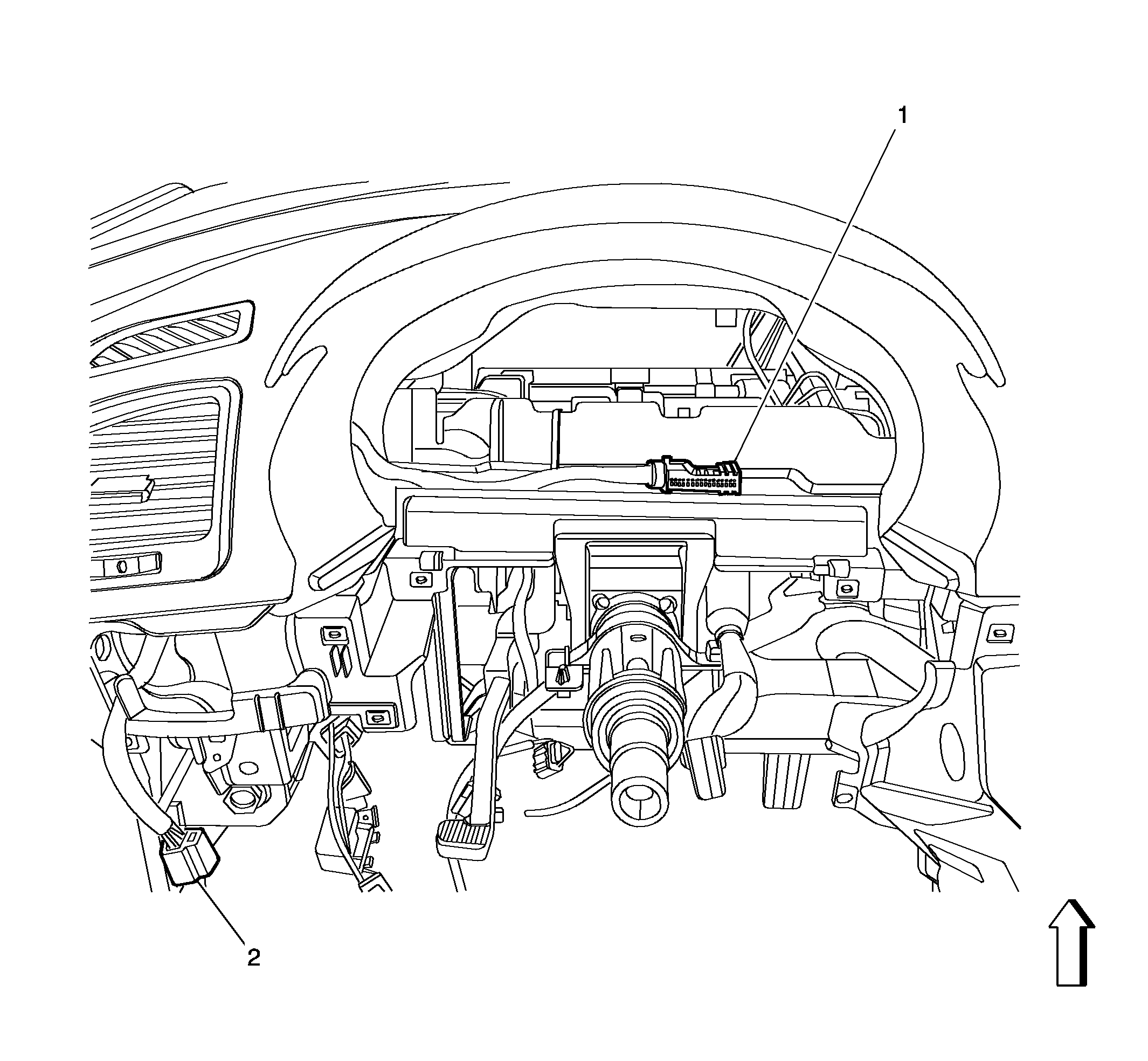

Fig 1: Upper Left Side Of The I/P Component Locations
GM2234558Courtesy of GENERAL MOTORS COMPANY
