Flexible Fuel Sensor Replacement

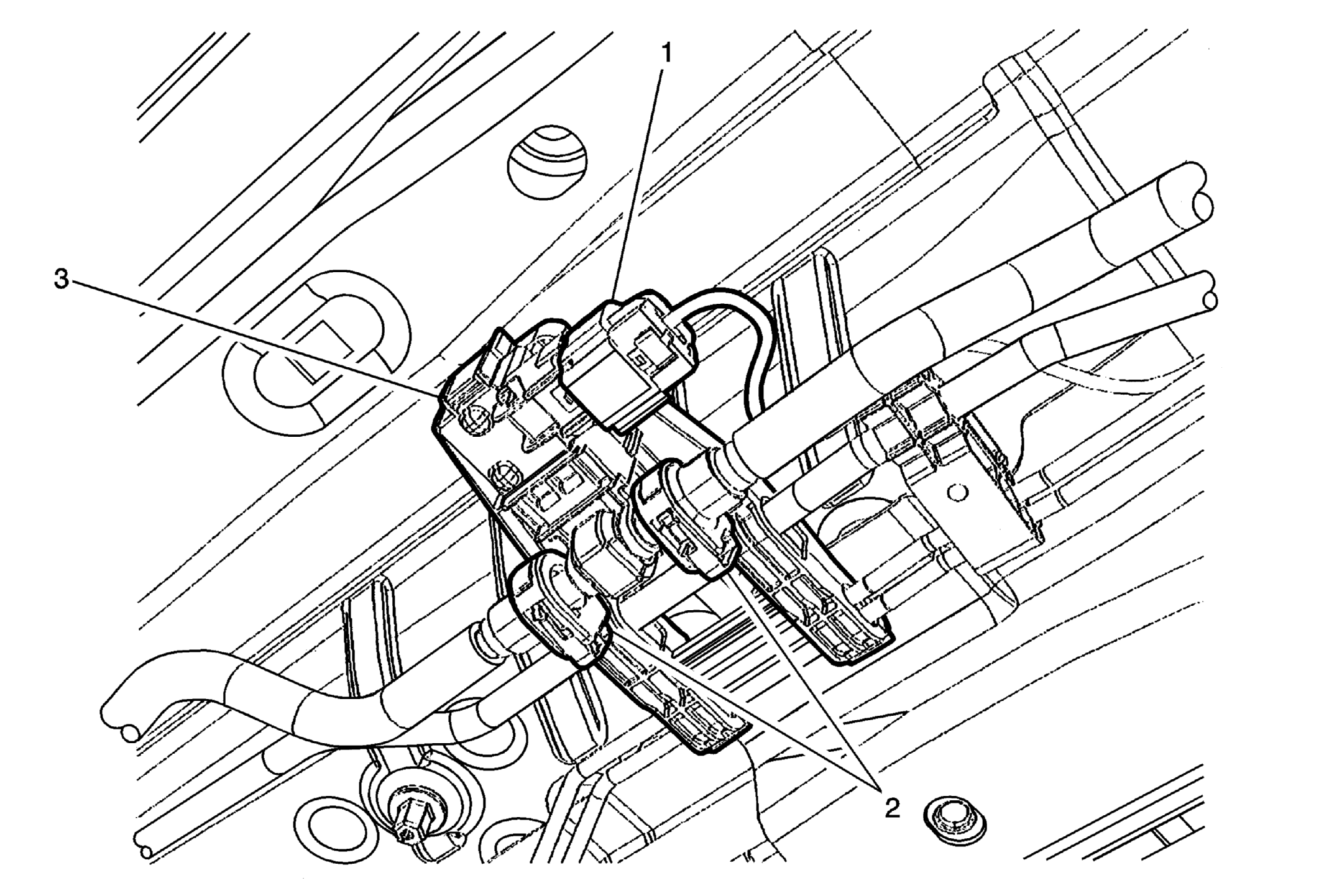

Fig 1: Flexible Fuel Sensor, Feed Lines & Harness Connector

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Flex Fuel Sensor Harness Connector Procedure Disconnect the harness connector from the sensor.
2	Fuel Feed Lines (Qty: 2) Procedure Disconnect the fuel feed lines from the sensor. Refer to Plastic Collar Quick Connect Fitting Service .
3	Flex Fuel Sensor Procedure Release sensor body from holding bracket by depressing retention tab.
