Fuel Pump Power Control Module Replacement

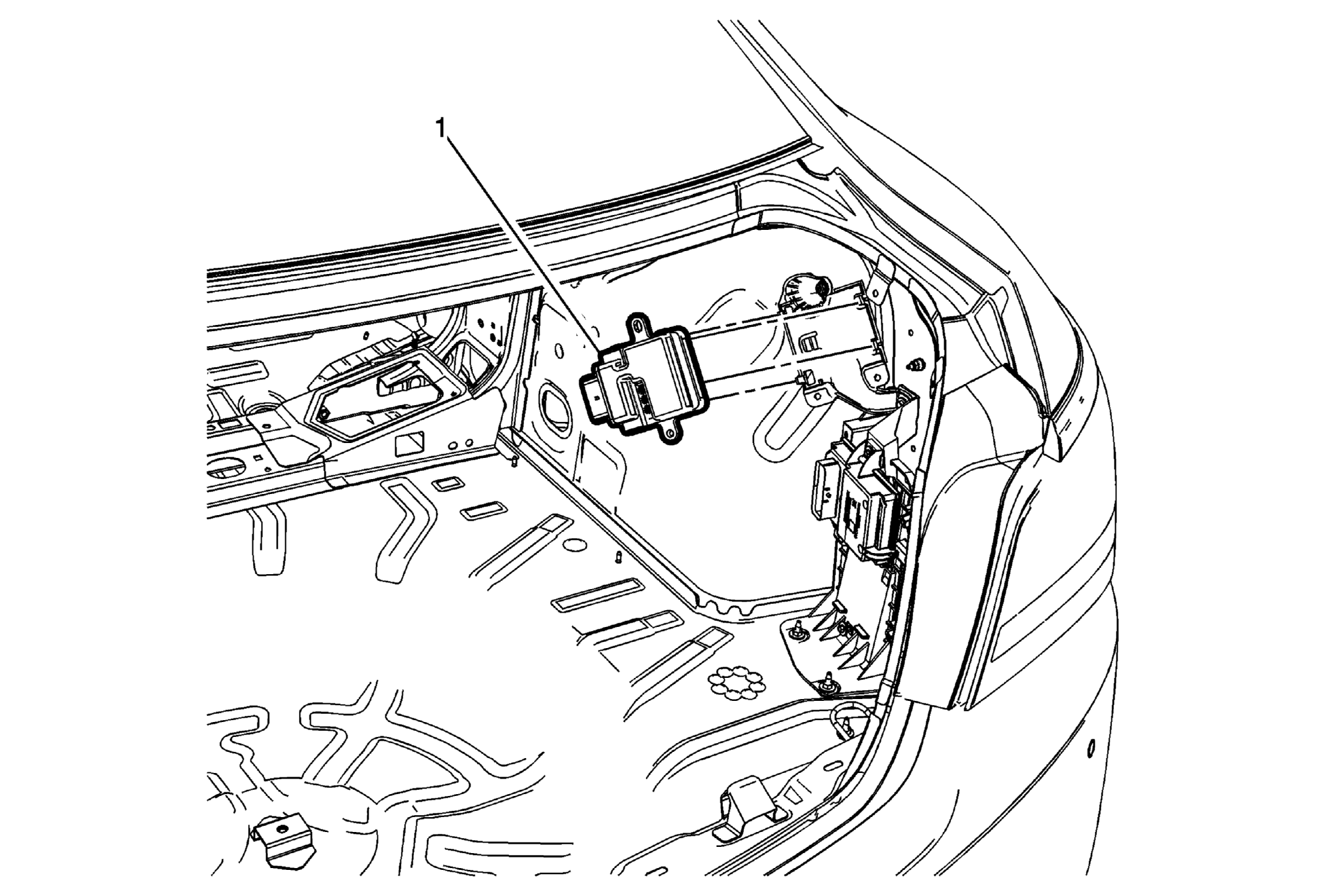

Fig 1: Fuel Pump Power Control Module
GM2884951Courtesy of GENERAL MOTORS COMPANY
Fuel Pump Power Control Module Replacement

Callout Component Name
Preliminary Procedure
Remove the passenger rear compartment side trim panel. Refer to Rear Compartment Side Trim Panel Replacement (without HP6) .
1 Fuel Pump Power Control Module

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tabs.
