Multimedia Player Interface (KTA)

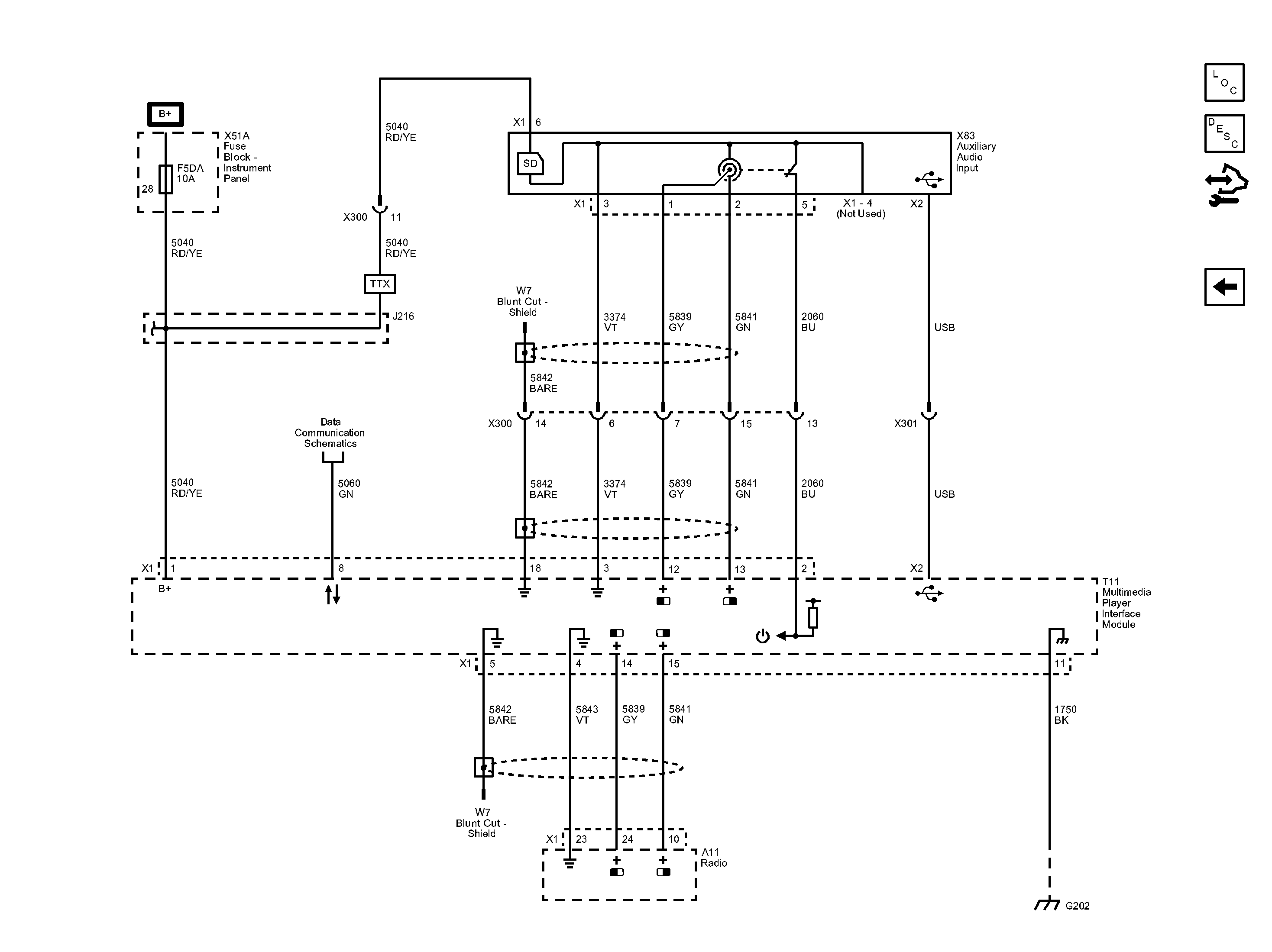

Fig 1: Multimedia Player Interface Wiring Schematic (KTA)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
