Front Side Door Window Regulator Motor Replacement

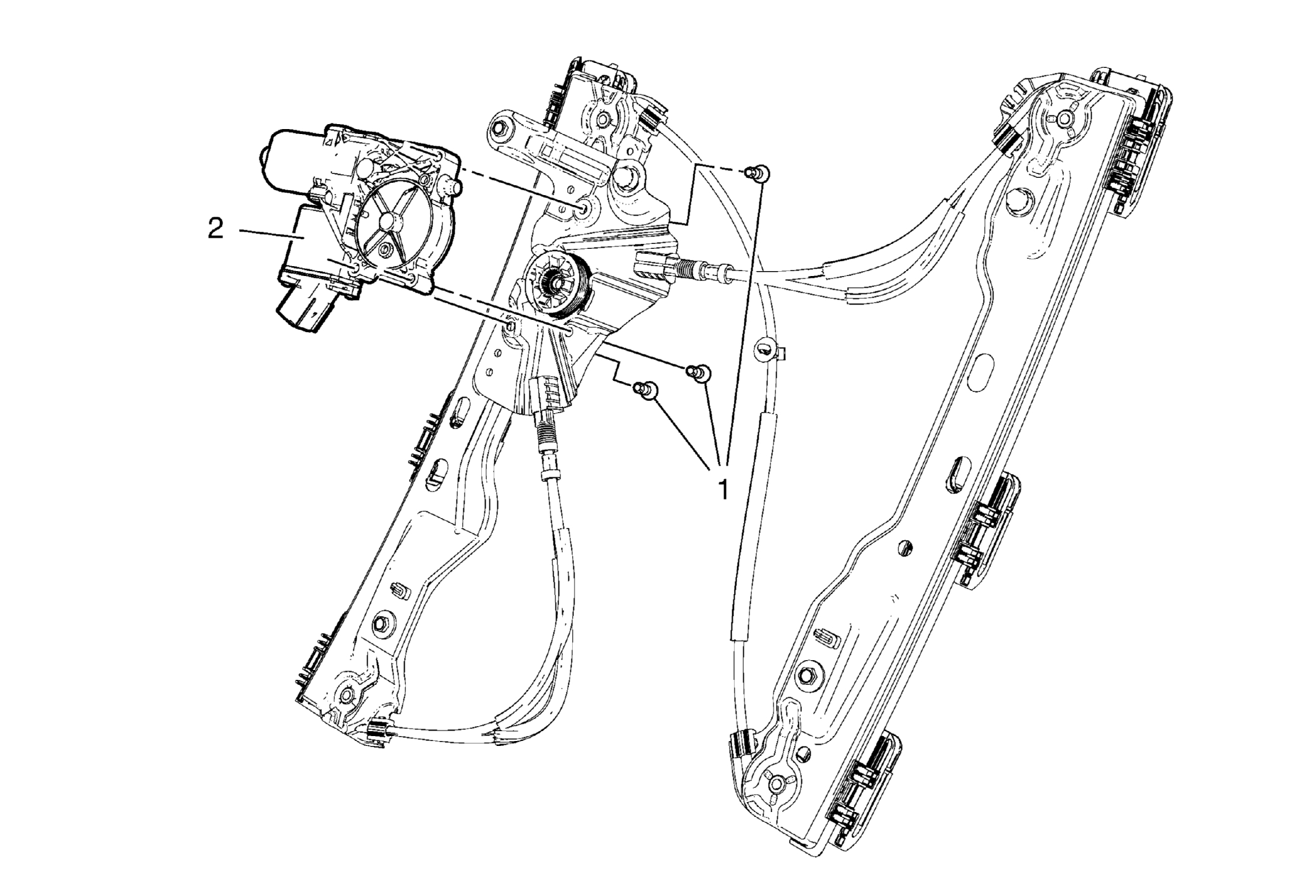

Fig 1: Front Side Door Window Regulator Motor Assembly & Screws

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door window regulator. Refer to Front Side Door Window Regulator Replacement .
1	Front Side Door Window Regulator Motor Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Front Side Door Window Regulator Motor Assembly
