Electronic Traction Control Switch Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

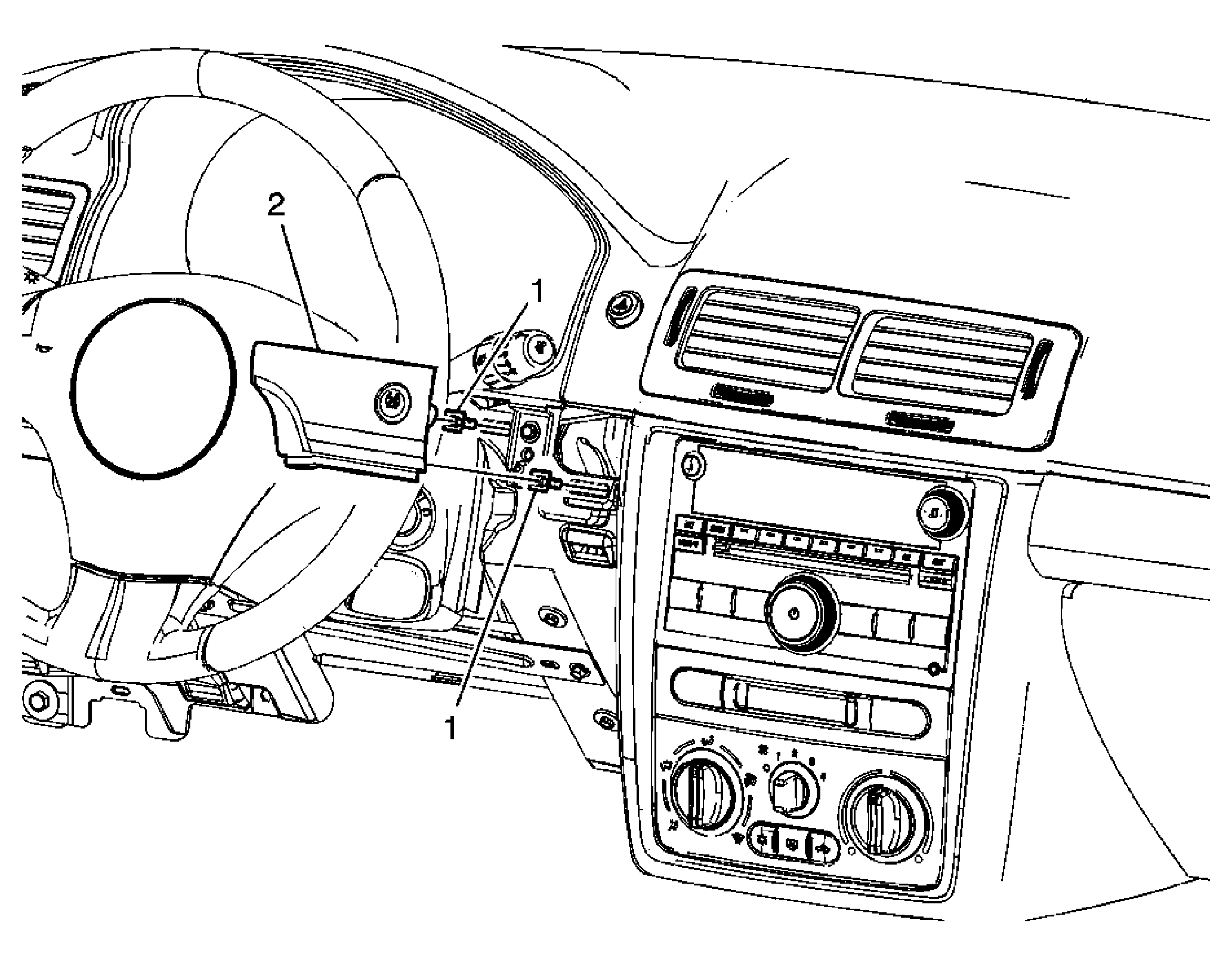

Fig 1: Locating Electronic Traction Control Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Refer to Fastener Caution . Preliminary Procedures Remove the steering column opening filler assembly. Refer to Steering Column Opening Filler Replacement . Tilt the steering wheel up.
1	Electronic Traction Control Switch Clip (Qty: 2)
2	Electronic Traction Control Switch Assembly Procedure Release the switch assembly by pulling away from the instrument panel retainer. Disconnect the electrical connector.

Callout

Component Name

CAUTION: Refer to Fastener Caution .

Preliminary Procedures

Remove the steering column opening filler assembly. Refer to Steering Column Opening Filler Replacement .
Tilt the steering wheel up.

Electronic Traction Control Switch Clip (Qty: 2)

Electronic Traction Control Switch Assembly

Procedure

Release the switch assembly by pulling away from the instrument panel retainer.
Disconnect the electrical connector.
