Headlamp Replacement (Halogen)

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

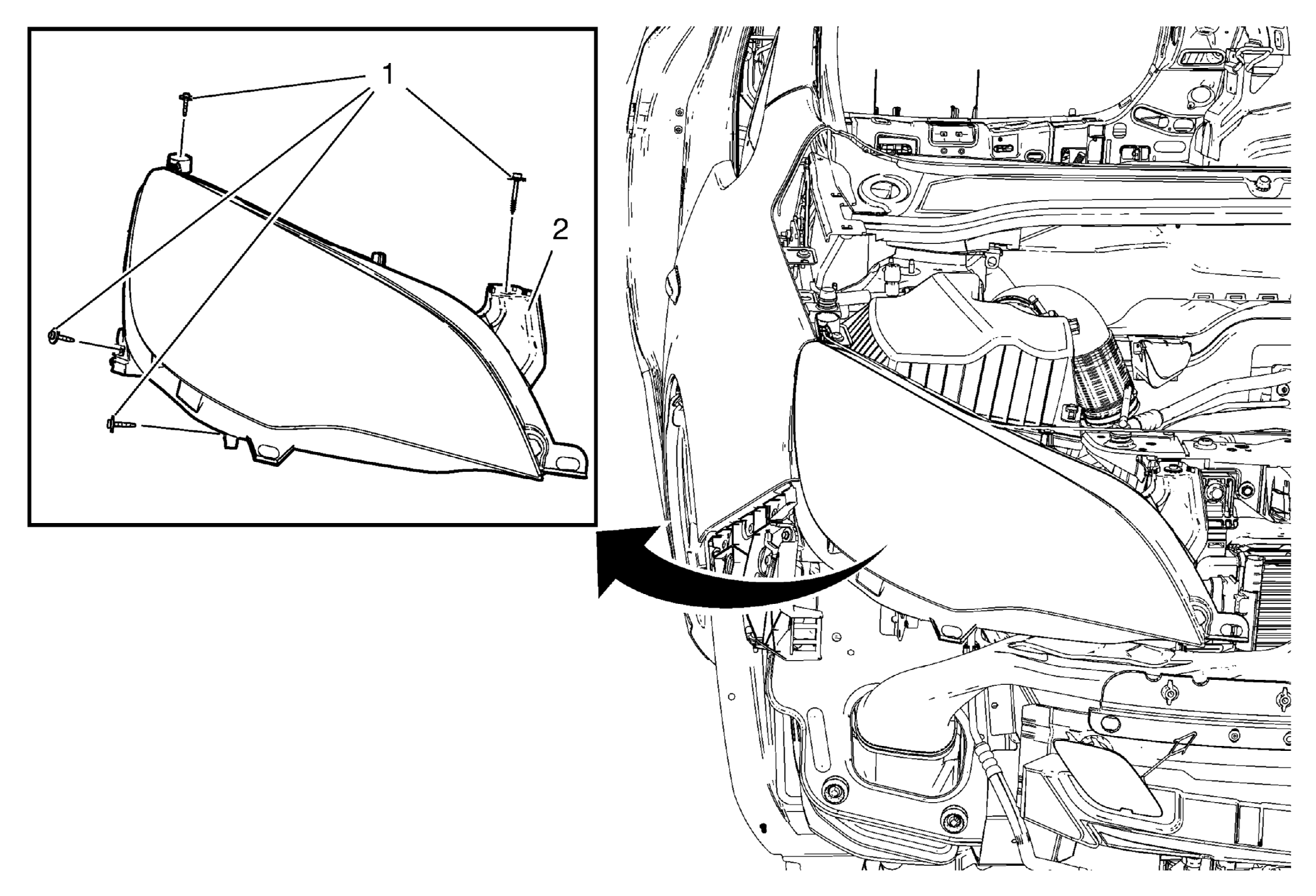

Fig 1: Headlamp (Halogen)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove front bumper fascia. Refer to Front Bumper Fascia Replacement .
1	Headlamp Bolt (Qty: 4) CAUTION: Refer to Fastener Caution .
2	Headlamp WARNING: Refer to Halogen Bulb Warning . Procedure Disconnect electrical connector. Replace bulbs as needed. Aim the headlamps after installation. Refer to Headlamp Aiming (Regular Adjustment) .

Callout

Component Name

Preliminary Procedures
Remove front bumper fascia. Refer to Front Bumper Fascia Replacement .

Headlamp Bolt (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Headlamp

WARNING:

Refer to Halogen Bulb Warning .

Procedure

Disconnect electrical connector.
Replace bulbs as needed.
Aim the headlamps after installation. Refer to Headlamp Aiming (Regular Adjustment) .
