Instrument Panel Compartment Lamp Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

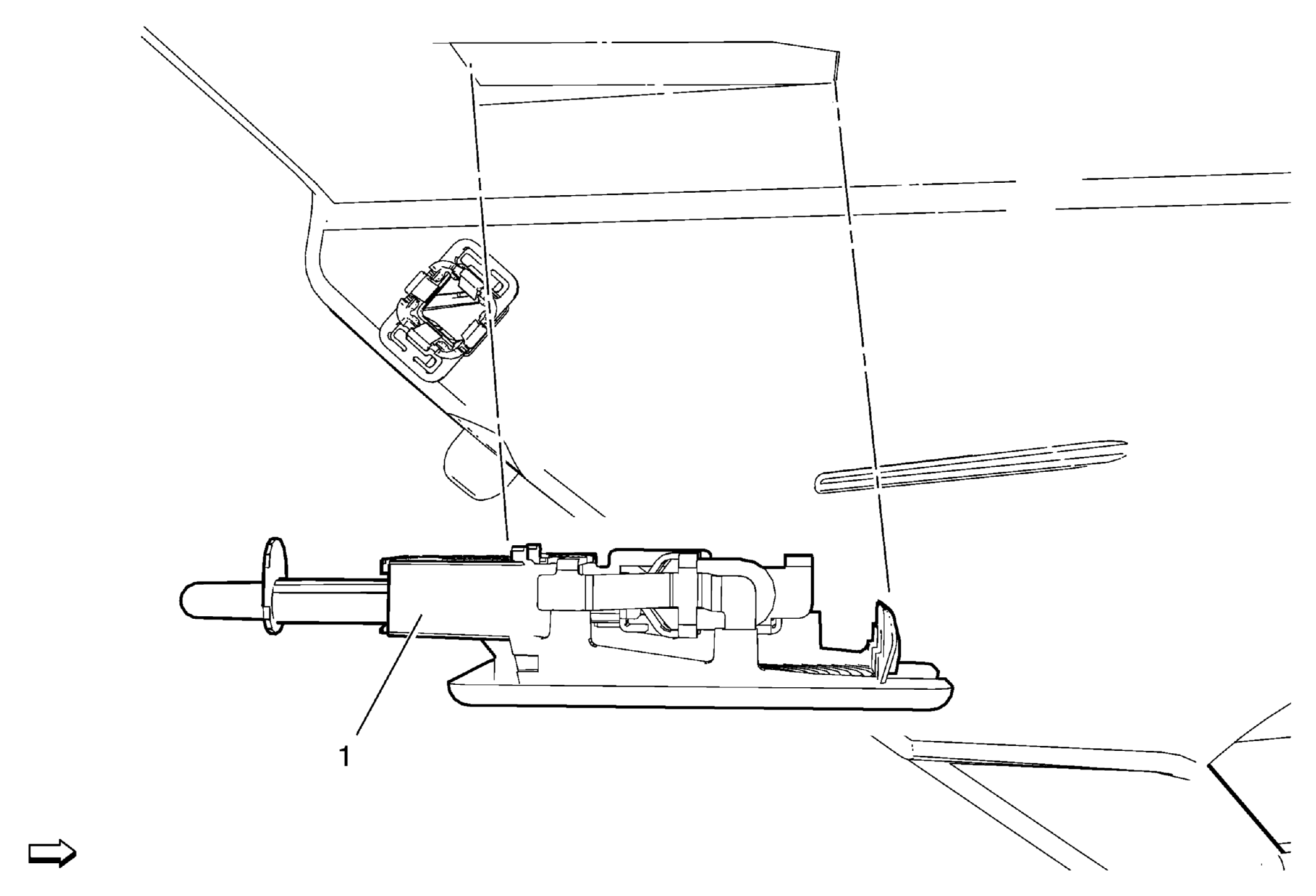

Fig 1: Instrument Panel Compartment Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
1	Instrument Panel Compartment Lamp Procedure Disconnect electrical connector. Replace the bulb, as needed. Observe the correct installation of the instrument panel compartment lamp plunger.

Callout

Component Name

Preliminary Procedures
Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .

Instrument Panel Compartment Lamp

Procedure

Disconnect electrical connector.
Replace the bulb, as needed.
Observe the correct installation of the instrument panel compartment lamp plunger.
