Tail Lamp Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

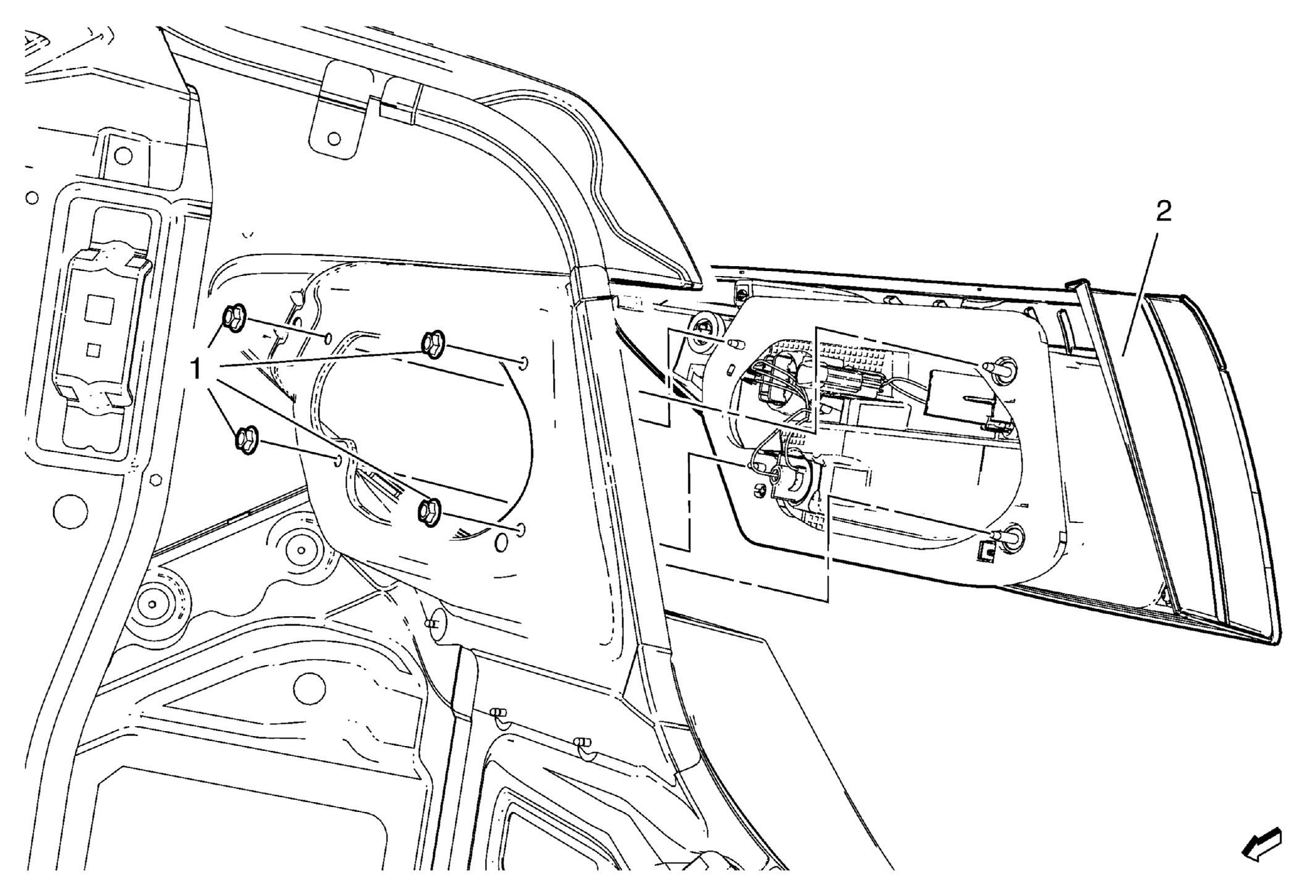

Fig 1: Tail Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment side trim. Refer to Rear Compartment Side Trim Replacement - Right Side , or Rear Compartment Side Trim Replacement - Left Side .
1	Tail Lamp Nut (Qty: 4) CAUTION: Refer to Fastener Caution .
2	Tail Lamp WARNING: Refer to Halogen Bulb Warning . Procedure Disconnect electrical connector. Using a blunt tool, tap gently on the tail lamp studs before attempting to remove the tail lamp assembly from the lamp pocket. Replace the bulb, as needed.

Callout

Component Name

Preliminary Procedure
Remove the rear compartment side trim. Refer to Rear Compartment Side Trim Replacement - Right Side , or Rear Compartment Side Trim Replacement - Left Side .

Tail Lamp Nut (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Tail Lamp

WARNING:

Refer to Halogen Bulb Warning .

Procedure

Disconnect electrical connector.
Using a blunt tool, tap gently on the tail lamp studs before attempting to remove the tail lamp assembly from the lamp pocket.
Replace the bulb, as needed.
