Auxiliary Audio Input

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

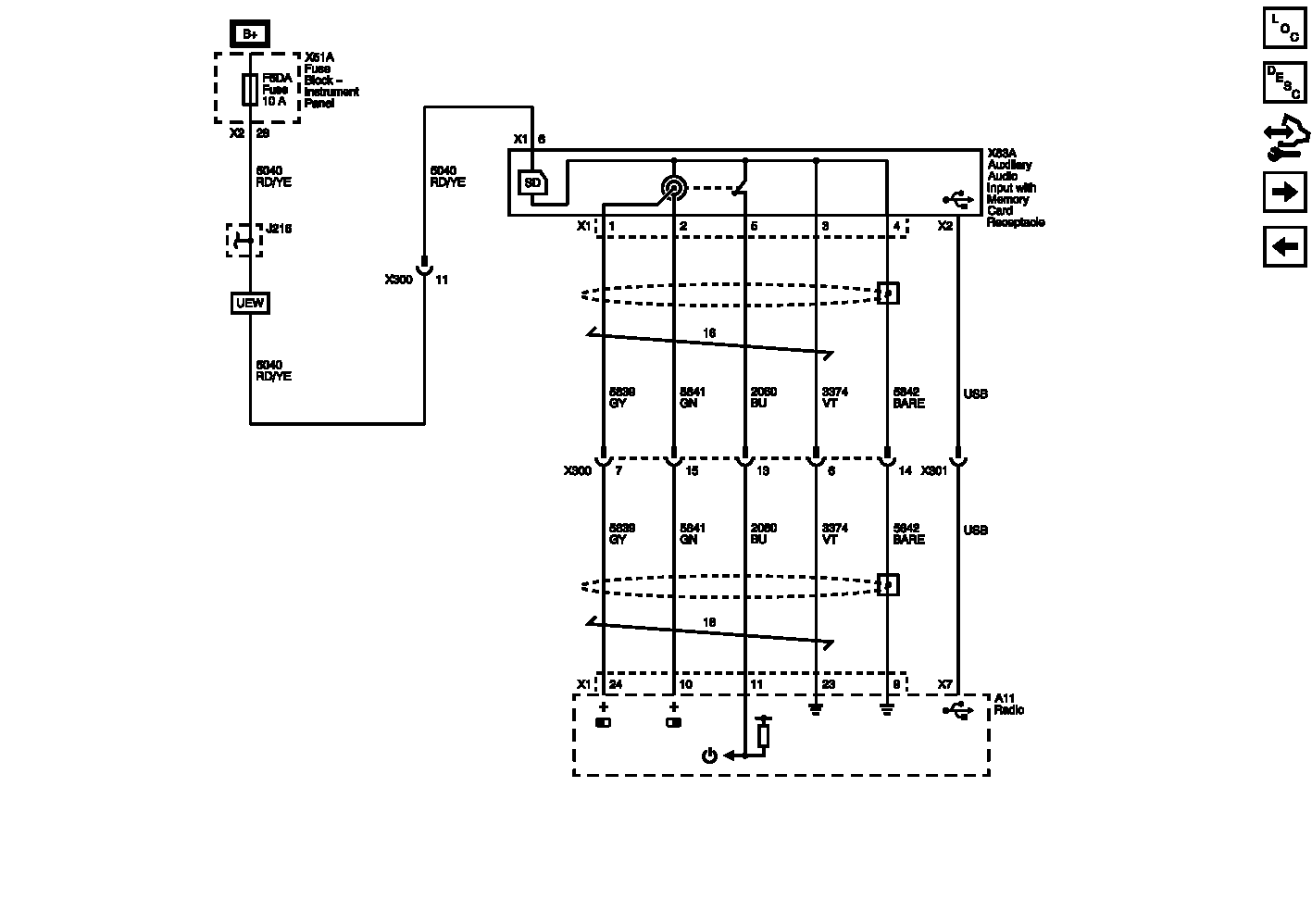

Fig 1: Auxiliary Audio Input Wiring Schematic
GM2689644Courtesy of GENERAL MOTORS COMPANY
