Exploded View

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

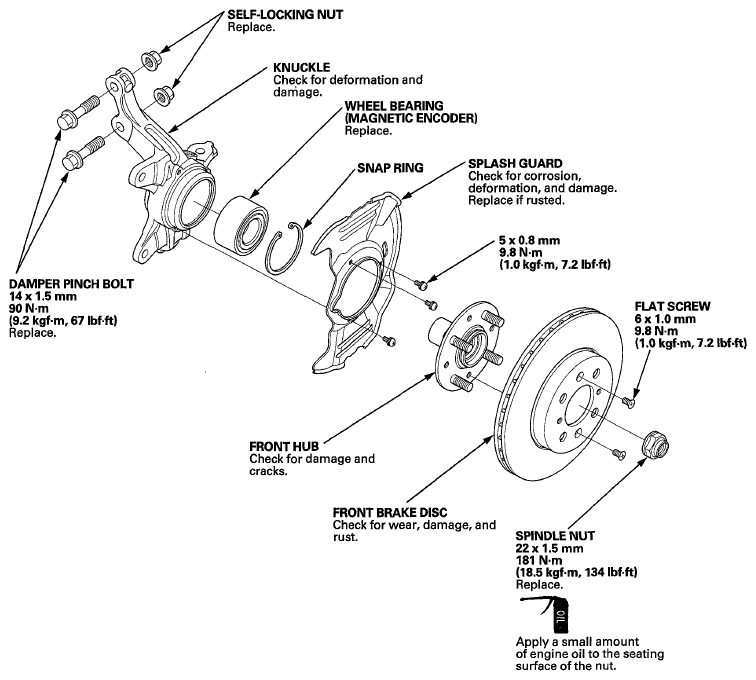

Fig 1: Knuckle, Hub And Wheel Bearing Replacement Components With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

Ball Joint Thread Protector, 10 mm 07AAF-SECA120
Hub Dis/Assembly Tool 07GAF-SE00100
Ball Joint Remover, 28 mm 07MAC-SL0A202
Ball Joint Thread Protector, 14 mm 071AF-S3VA000
Attachment, 52 x 55 mm 07746-0010400
Driver Handle, 15 x 135L 07749-0010000
Support Base 07965-SD90100
