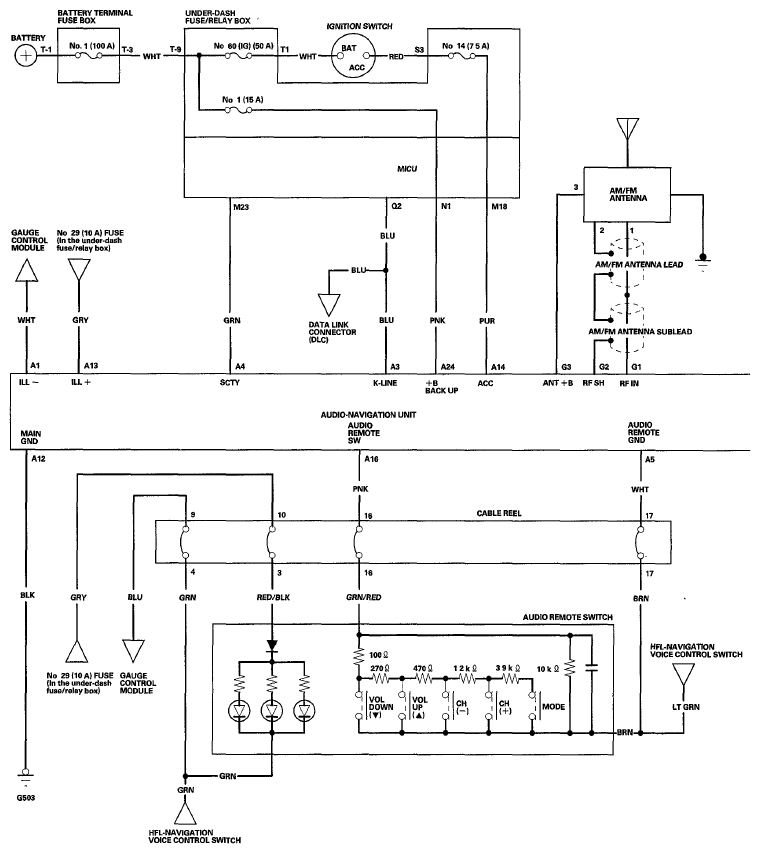

Fig 1: Audio System Diagram - With Navigation (1 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

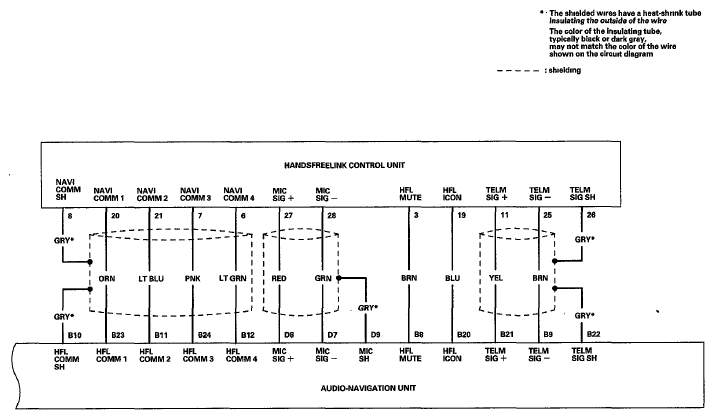

Fig 2: Audio System Diagram - With Navigation (2 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

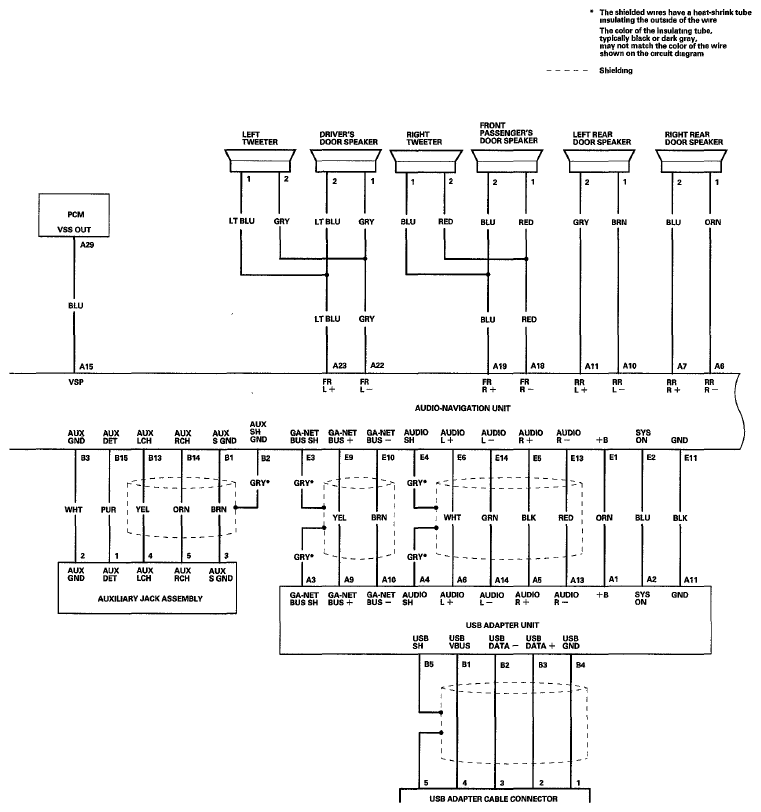

Fig 3: Audio System Diagram - With Navigation (3 Of 3)
