Speaker Check Mode
WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- There may be other self-diagnostic functions that are for factory use only.
- If no sound is heard from speakers, go to no sound is heard from the speaker(s) (see NO SOUND IS HEARD FROM THE SPEAKER(S) (DISPLAY IS NORMAL) (WITHOUT NAVIGATION) ).
- Turn the ignition switch to ON (II).
- Make sure the audio unit is turned off.

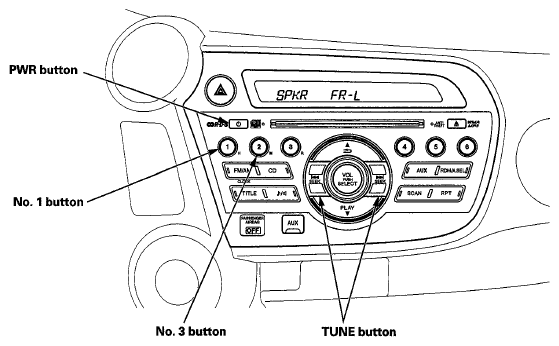

- Push and hold the preset No. 1 and No. 3 buttons.

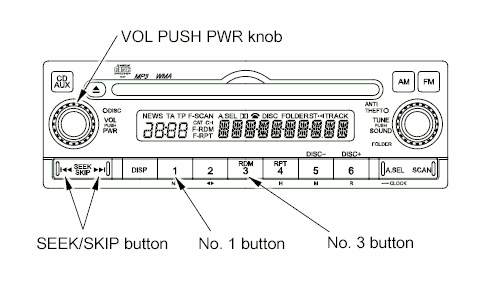

- While holding the buttons, press the PWR button (Except DX model) or VOL PUSH PWR knob (DX model) to ON.
- Release the buttons and the speaker check mode begins. A tone should sound from one speaker as indicated on the display.
- Each time you press the SEEK button (Except DX model) or SEEK/SKIP button (DX model), the test moves to the next speaker in the order listed in the table.NOTE: Adjust the volume level to a comfortable level.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Display Specifications
SEEK ( →→ ) is pressed: 1 → 2 → 3 → 4 → 5
SEEK ( ←← ) is pressed: 1 → 5 → 4 → 3 → 2
SPEAKER DISPLAYED SEGMENTS CHARTSpeaker Displayed Segments Displayed Segments 1 Driver's door speaker and left tweeter SPKR FR-L You should hear a tone corresponding to the speaker 2 Front passenger's door speaker and right tweeter SPKR FR-R You should hear a tone corresponding to the speaker 3 Right rear door speaker SPKR RR-R You should hear a tone corresponding to the speaker 4 Left rear door speaker SPKR RR-L You should hear a tone corresponding to the speaker 5 All speakers SPKR ALL You should hear a tone corresponding to the speaker NOTE: Any other diagnostic screens are for factory use only. - The speaker check mode ends when you turn the audio unit off or turn the ignition switch to LOCK (0).
