Exploded View

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

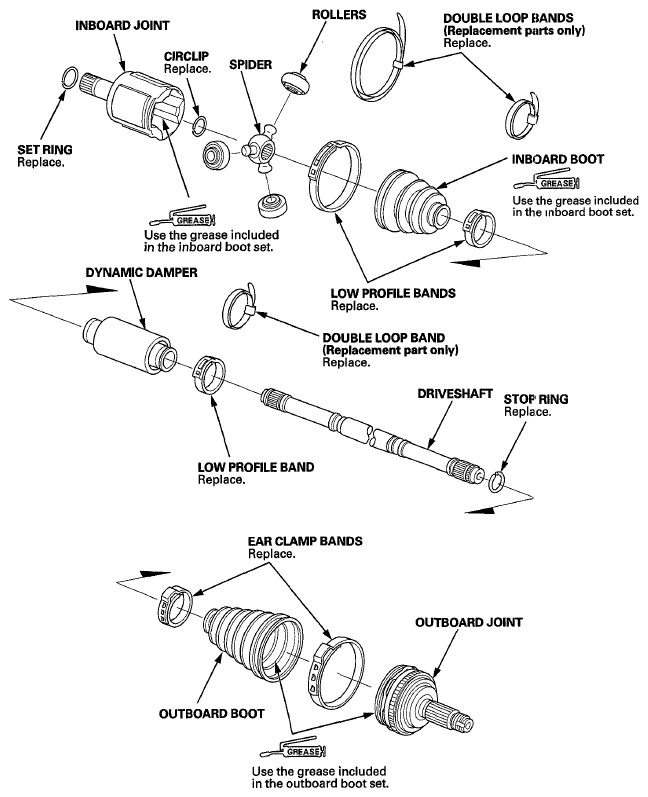

Fig 1: Exploded View Of Driveshaft Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

Boot Band Tool KD-3191 or equivalent, commercially available
Seal Clamp Tool Kent-Moore J-35910 or equivalent, commercially available
Boot Band Pliers, commercially available

NOTE: Refer to the EXPLODED VIEW , as needed, during this procedure.
