Installation Procedure

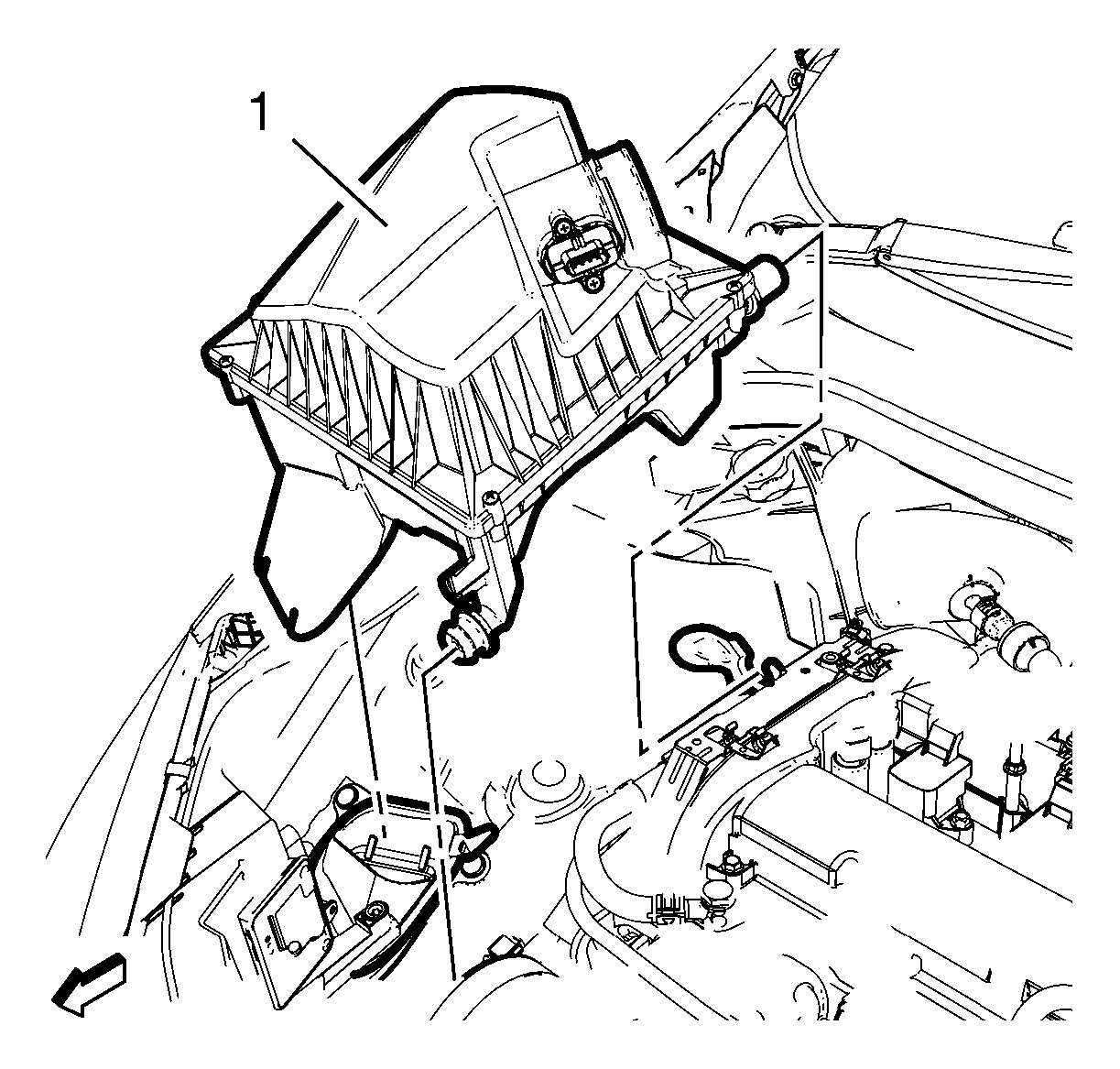

    Fig 1: Air Cleaner Assembly
    GM2699459Courtesy of GENERAL MOTORS COMPANY
  1. Install the air cleaner assembly (1).

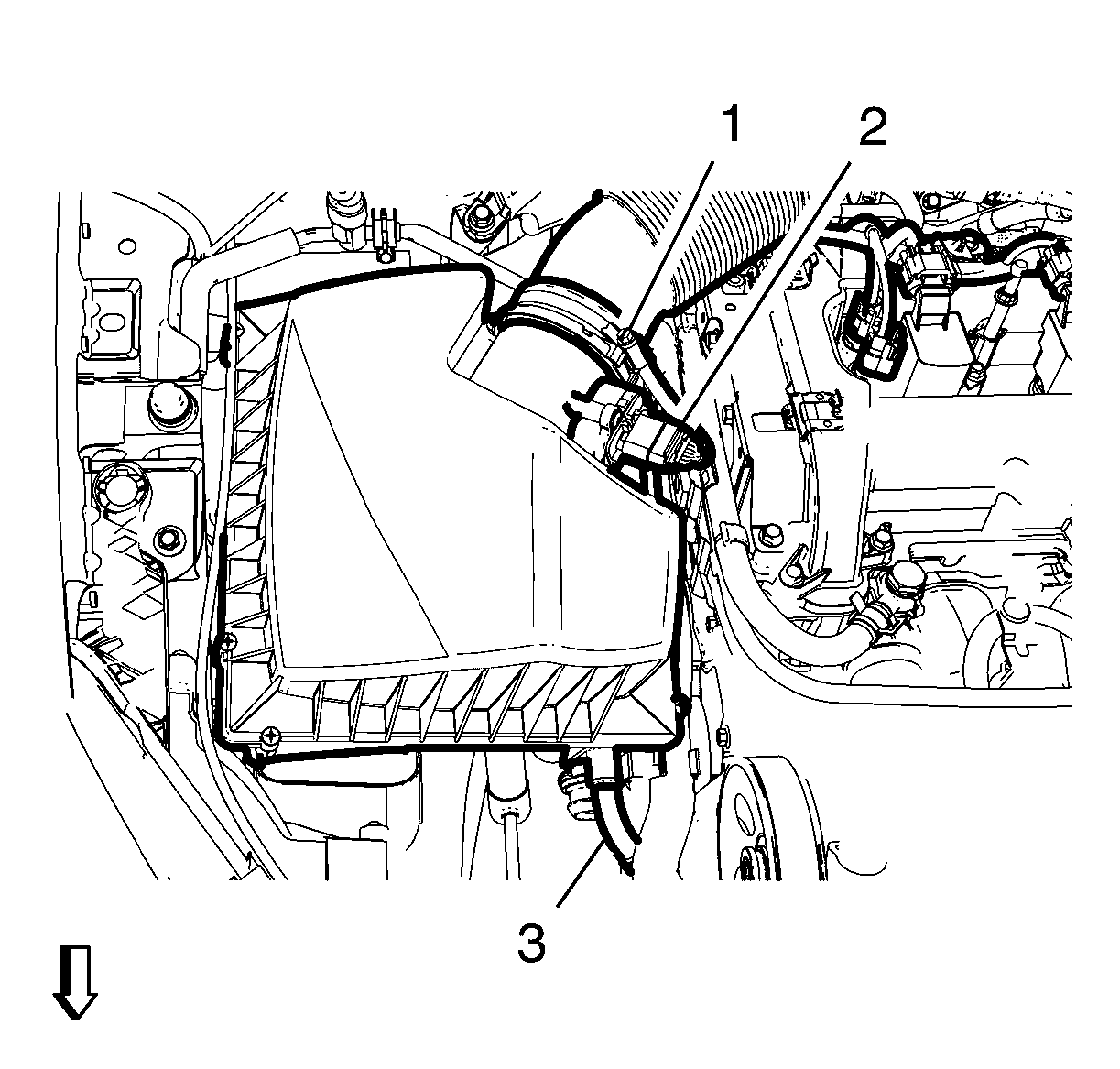

    2. Fig 2: Air Cleaner Assembly Attachments
    GM2699458Courtesy of GENERAL MOTORS COMPANY
  2. Connect the mass airflow sensor wiring harness plug (2).
  3. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
  4. Clip in the drain hose (3), if equipped.
