Installation Procedure

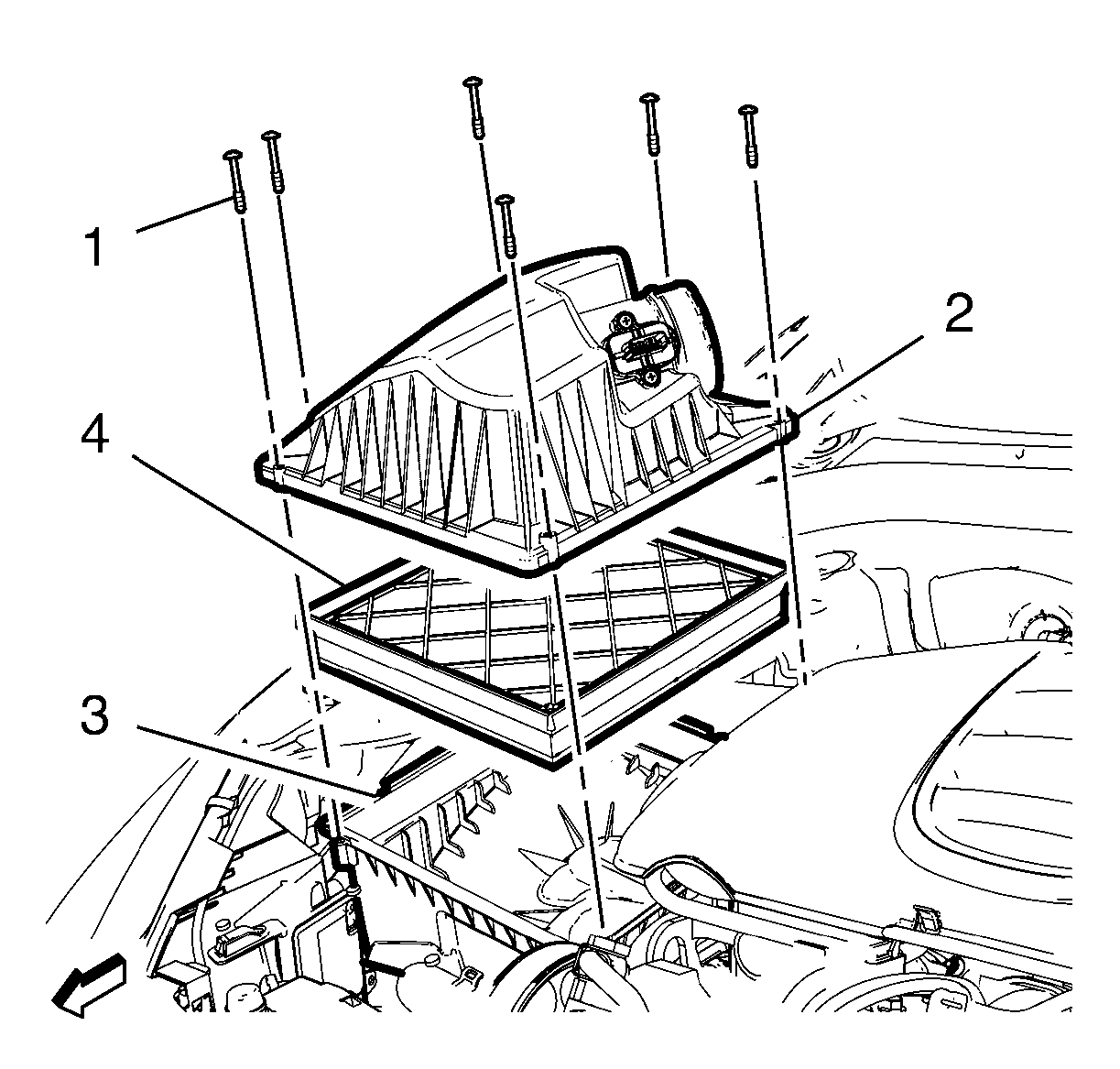

    Fig 1: Air Cleaner Housing Components
    GM2699475Courtesy of GENERAL MOTORS COMPANY
  1. Install the air cleaner element (4) into the air cleaner housing (3).
  2. Install the air cleaner housing cover (2).
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the 6 air cleaner housing cover bolts (1) and tighten to 5 N.m (44 lb in).
  4. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
    5. Fig 2: MAF Sensor Wiring Harness Plug
    GM2699458Courtesy of GENERAL MOTORS COMPANY
  5. Connect the intake air sensor wiring harness plug (2).
