Mass Airflow Sensor Replacement

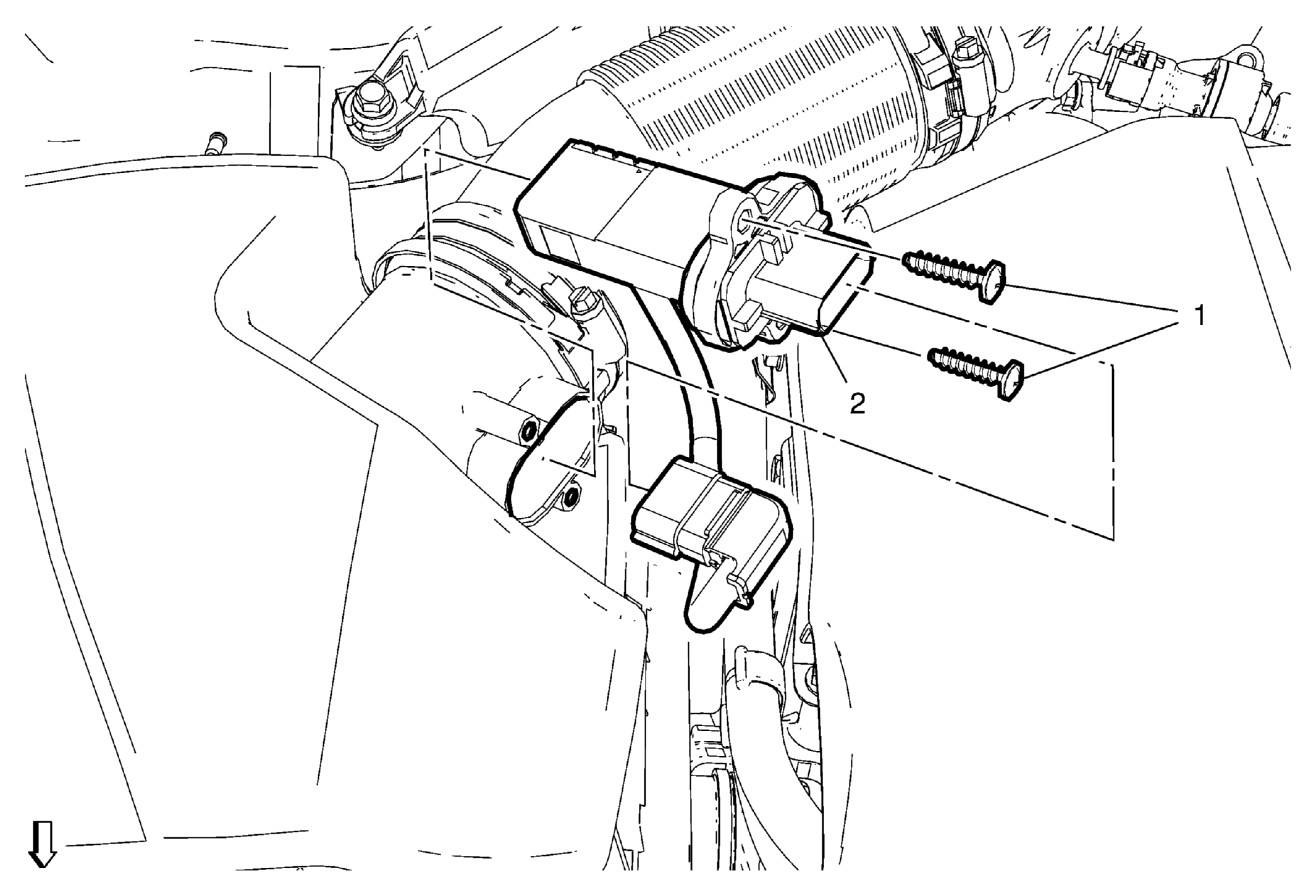

Fig 1: Mass Airflow Sensor & Bolts
GM2739137Courtesy of GENERAL MOTORS COMPANY
Mass Airflow Sensor Replacement

Callout Component Name
Preliminary Procedure
Remove the engine sight shield. Refer to Engine Sight Shield Replacement .
1 Mass Airflow Sensor Bolt (Qty: 2)
2 Mass Airflow Sensor
