Communication Interface Module Bracket Replacement

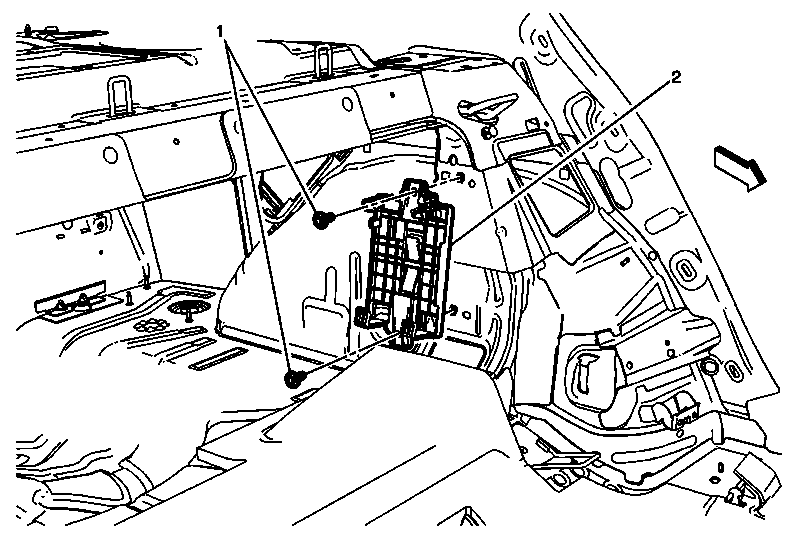

Fig 1: Communication Interface Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the compartment side trim panel. Refer to Rear Compartment Side Trim Panel Replacement
1	Communication Interface Module Bracket Bolts (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Communication Interface Module Bracket Procedure Disconnect the electrical connector. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Remove the compartment side trim panel. Refer to Rear Compartment Side Trim Panel Replacement

Communication Interface Module Bracket Bolts (Qty: 2)

CAUTION:

Communication Interface Module Bracket

Procedure
