Communication Interface Module Replacement

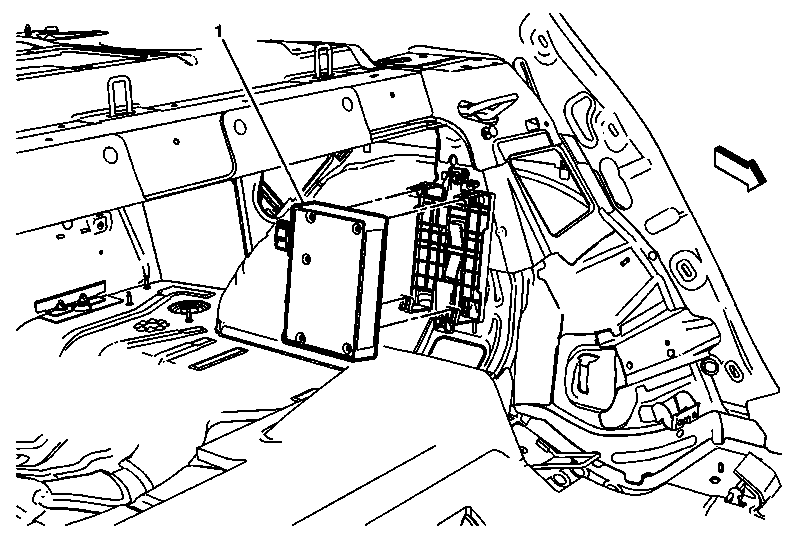

Fig 1: Communication Interface Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment side trim panel. Refer to Rear Compartment Side Trim Panel Replacement .
1	Communication Interface Module Procedure Disconnect the electrical connections. If replacing the communication interface module be sure to transfer Bluetooth antenna, if equipped. For programming and set up procedures, refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the rear compartment side trim panel. Refer to Rear Compartment Side Trim Panel Replacement .

Communication Interface Module

Procedure

Disconnect the electrical connections.
If replacing the communication interface module be sure to transfer Bluetooth antenna, if equipped.
For programming and set up procedures, refer to Control Module References .
