Rear Object Alarm Indicator Replacement

WARNING: This page is about a different car, the 2010 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

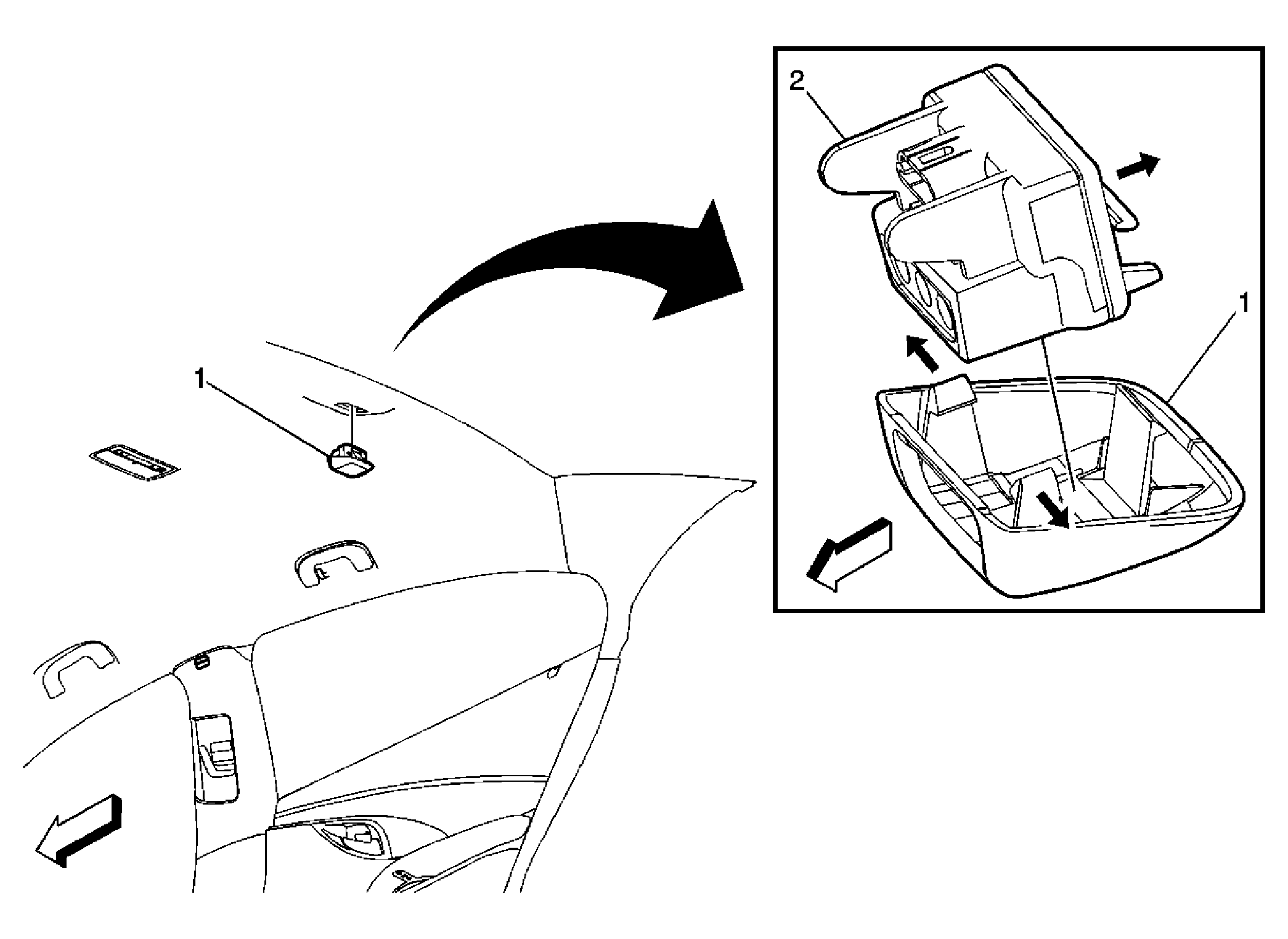

Fig 1: Rear Object Alarm Indicator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Information Center Telltale Bezel Procedure Position a flat bladed plastic trim tool between the headliner and the rear of the information center telltale assembly bezel to release the tab retaining the bezel to the headliner. Disconnect the electrical connector.
2	Rear Object Alarm Indicator Assembly Procedure: Pull the tabs outwards to release the module from the bezel.

Callout

Component Name

Information Center Telltale Bezel

Procedure

Position a flat bladed plastic trim tool between the headliner and the rear of the information center telltale assembly bezel to release the tab retaining the bezel to the headliner.
Disconnect the electrical connector.

Rear Object Alarm Indicator Assembly
Procedure:
Pull the tabs outwards to release the module from the bezel.
