Shift Lock Control System

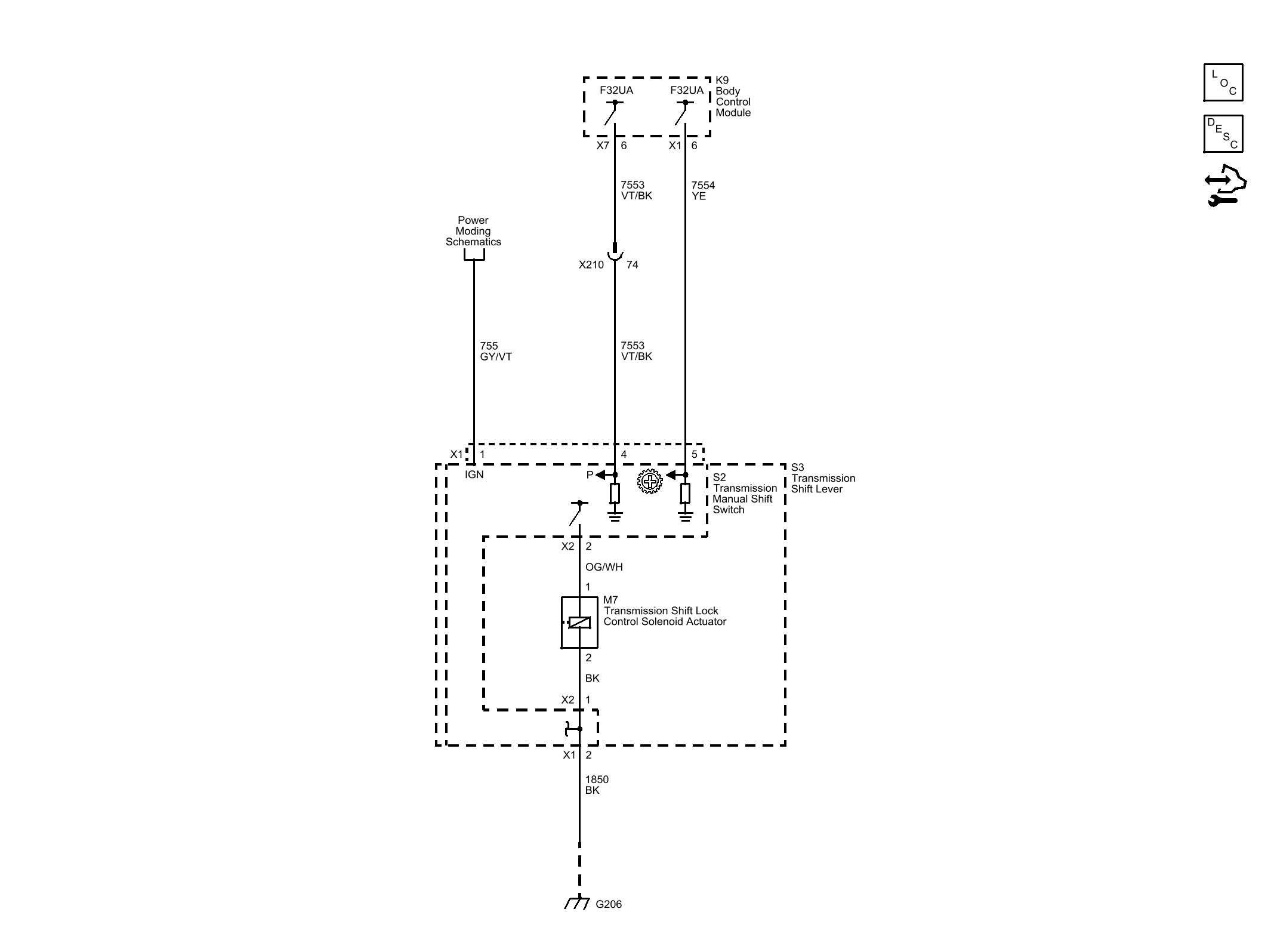

Fig 1: Shift Lock Control System
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
