Outside Rearview Mirror Remote Control Switch Replacement

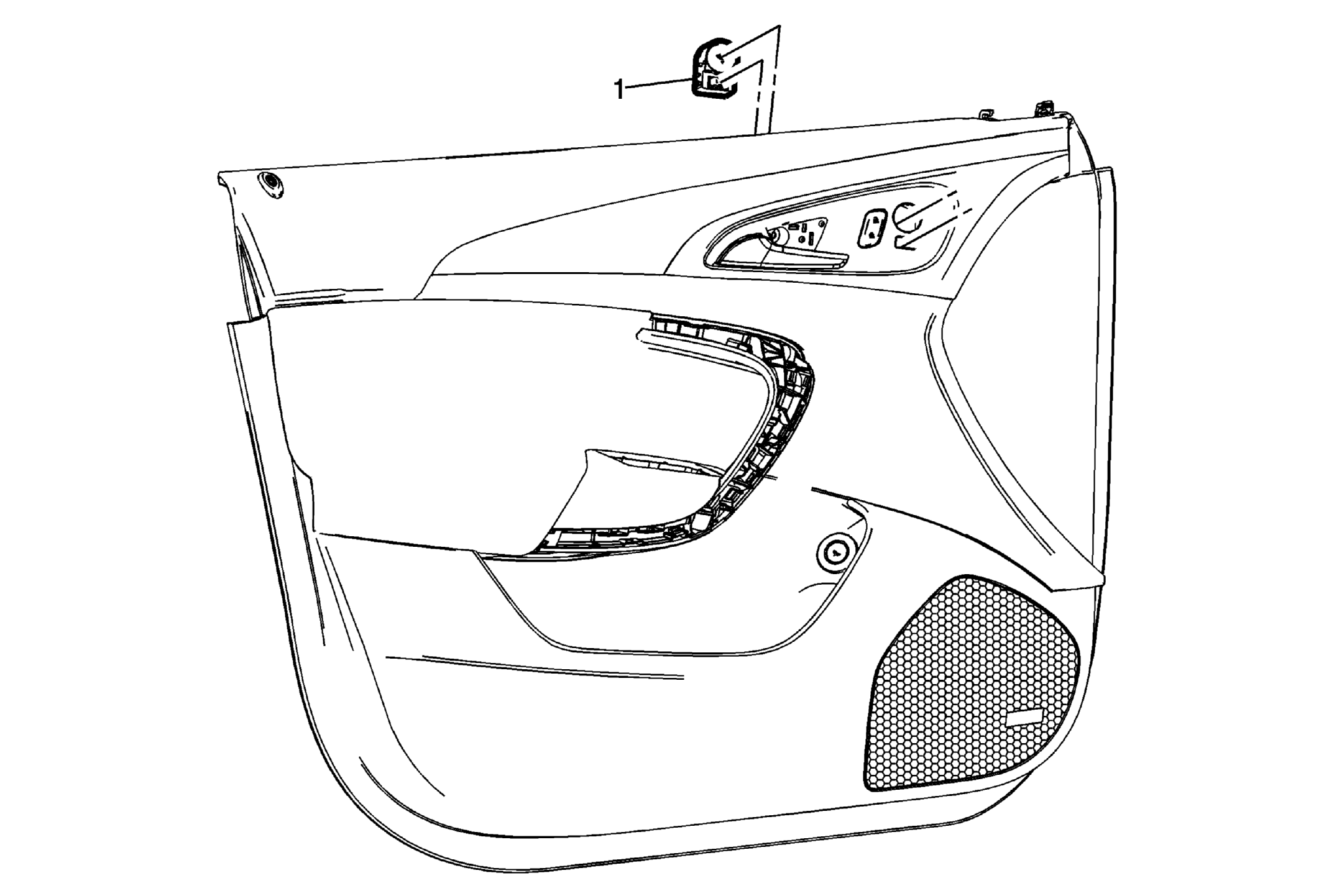

Fig 1: Outside Rearview Mirror Remote Control Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement .
1	Outside Remote Control Rearview Mirror Switch Procedure Disconnect the electrical connector. Release tabs on switch to remove from the trim panel.

Callout

Component Name

Preliminary Procedure
Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement .

Outside Remote Control Rearview Mirror Switch

Procedure
