Front Side Door Window Replacement

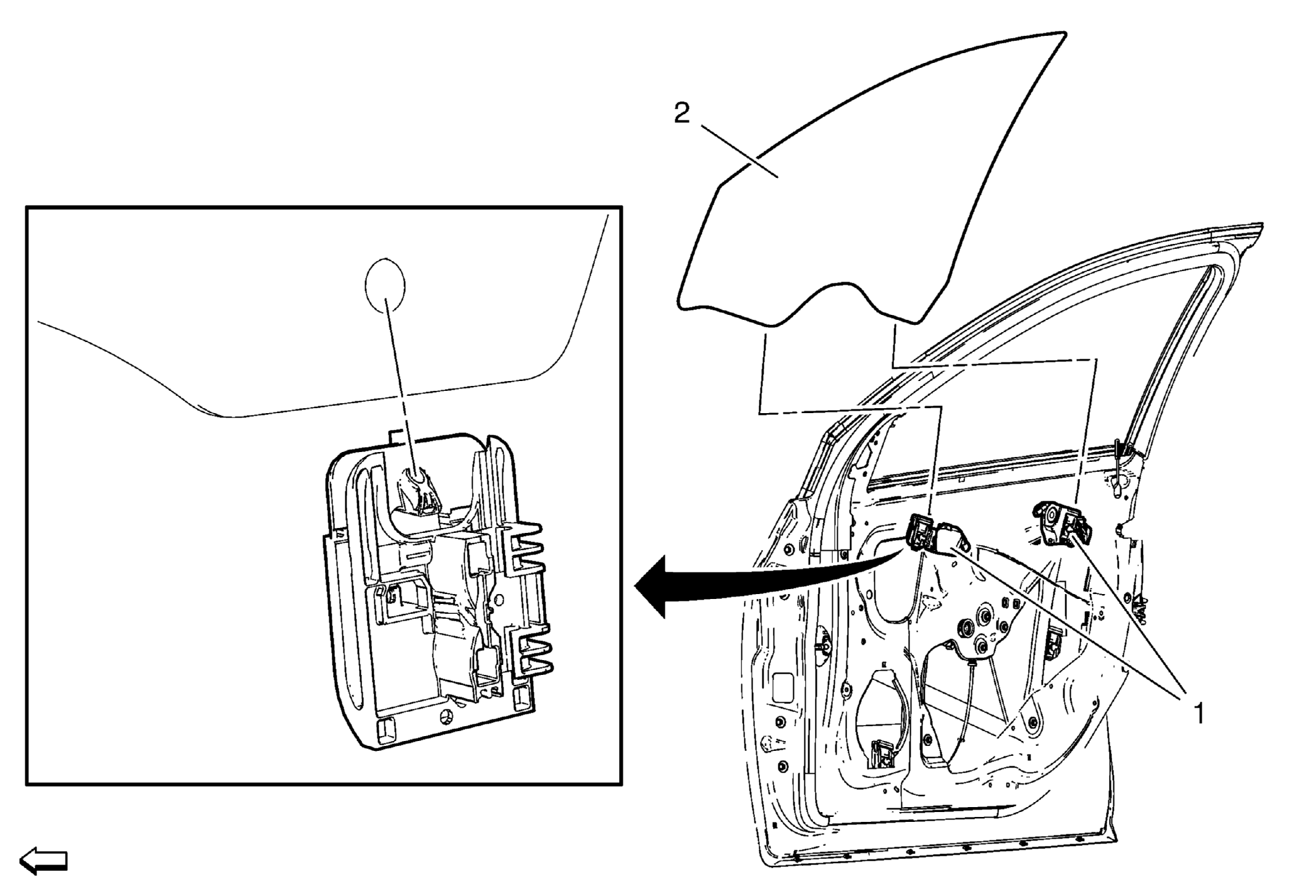

Fig 1: Front Side Door Window & Regulator Sashes

GM2189714

Courtesy of GENERAL MOTORS COMPANY

Front Side Door Window Replacement

Callout

Component Name

Preliminary Procedure

Position the window approximately half way down in the door.
Remove the front side door water deflector. Refer to Front Side Door Water Deflector Replacement .
Remove the outer sealing Strip. Refer to Front Side Door Window Outer Sealing Strip Replacement .

1

Front Side Door Window Regulator Sash (Qty: 2)

2

Front Side Door Window

Procedure

Push the window regulator sash, pull upward to release the window from the sash.
Rotate the front door window as necessary to remove it from the door.
