Installation Procedure

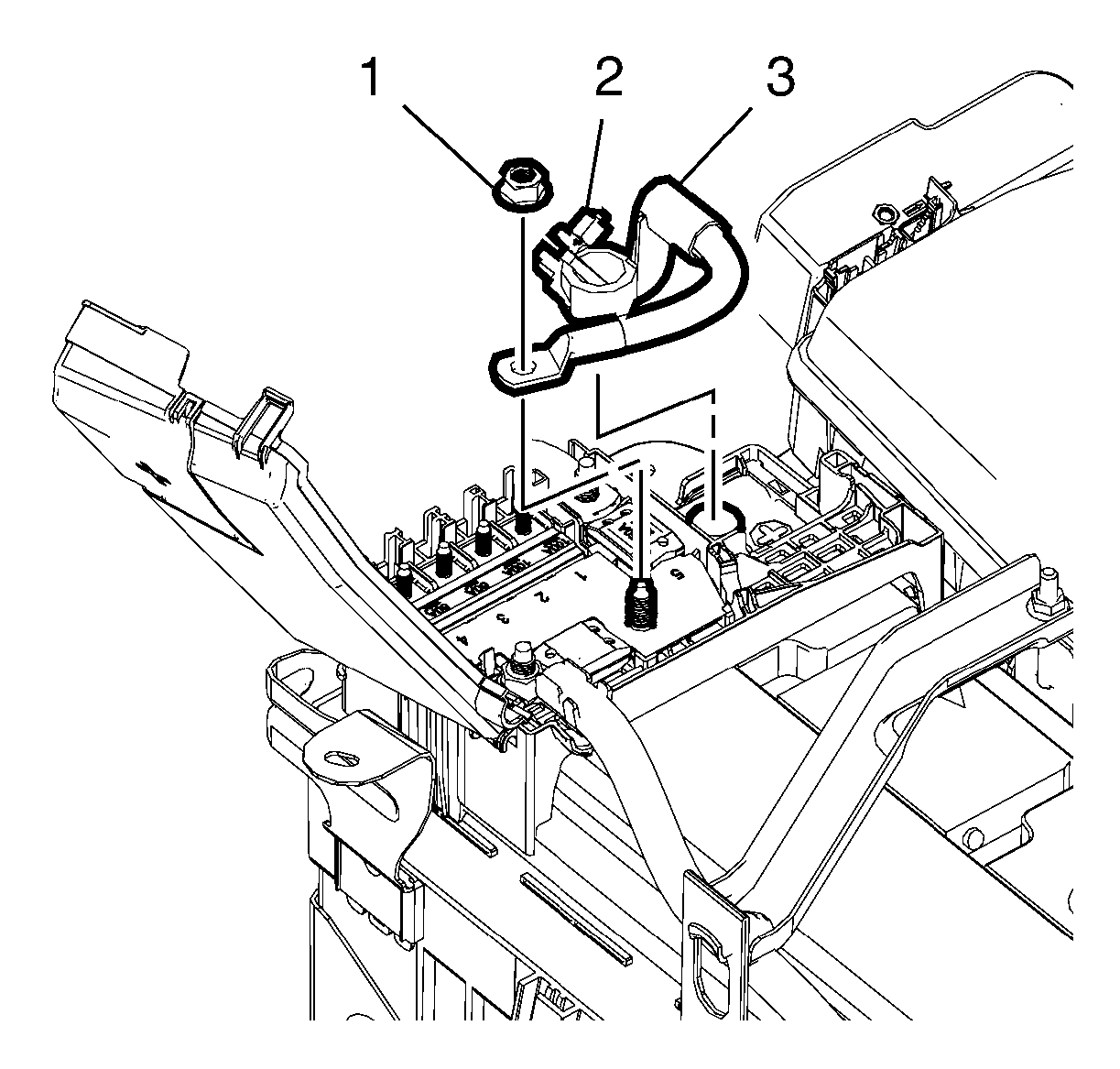

    Fig 1: Battery Positive Cable-To-Fuse Box Nut
    GM2577152Courtesy of GENERAL MOTORS COMPANY
  1. Install the battery positive cable to fuse box cable (3).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the battery positive cable to battery nut (2) and tighten to 4.5 N.m (40 lb in).
  3. Install the battery positive cable to fuse box nut (1) and tighten to 9 N.m (80 lb in).

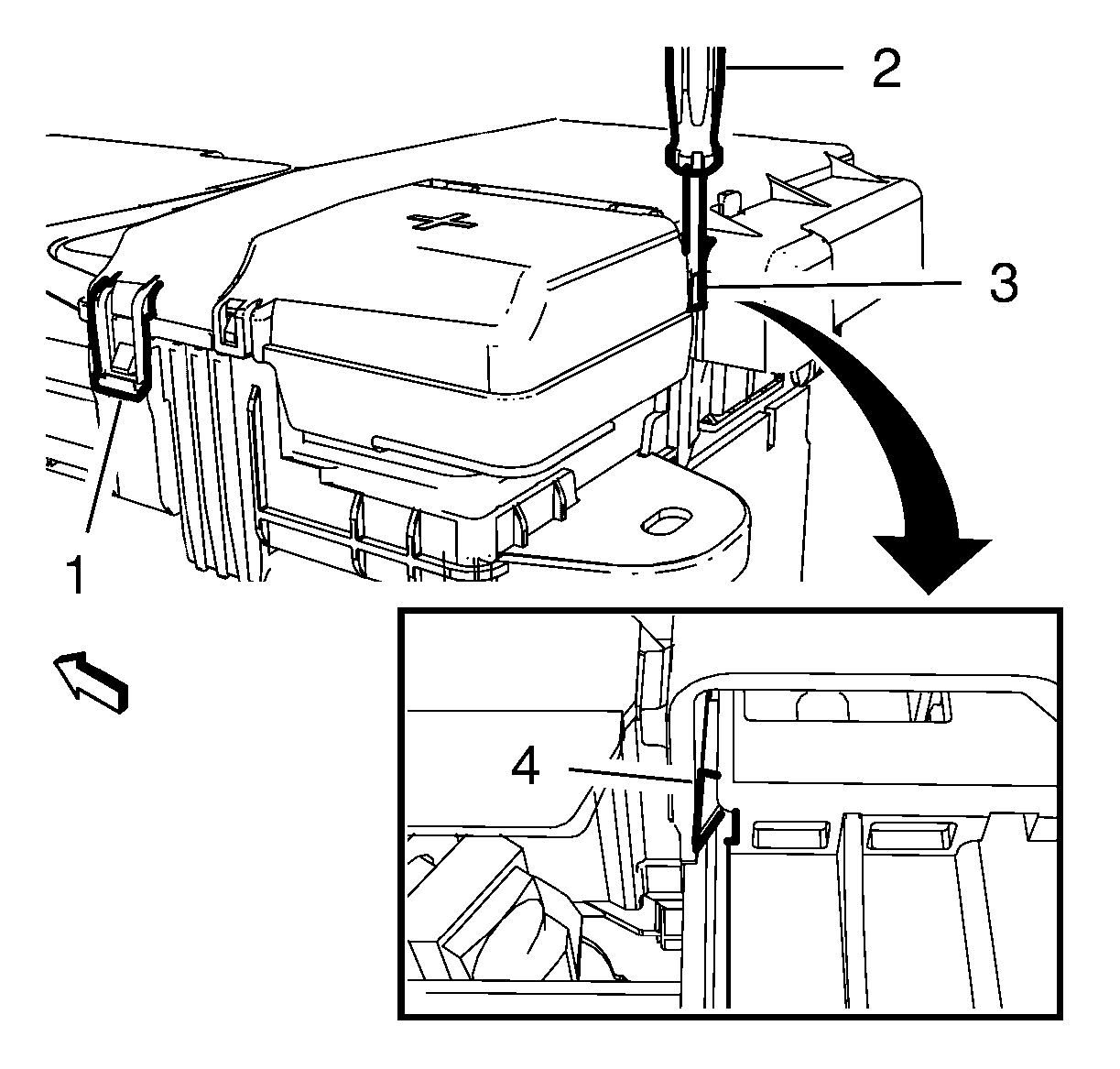

    4. Fig 2: Battery Fuse Box Cover
    GM2577153Courtesy of GENERAL MOTORS COMPANY
  4. Close the battery fuse box cover and lock the retaining tabs (1) and (4).
  5. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
