Installation Procedure

    Fig 1: Battery Tray Bolts
    GM2027666Courtesy of GENERAL MOTORS COMPANY
  1. Install the battery tray (2).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the 3 battery tray bolts (1) and tighten to 15 N.m (11 lb ft).

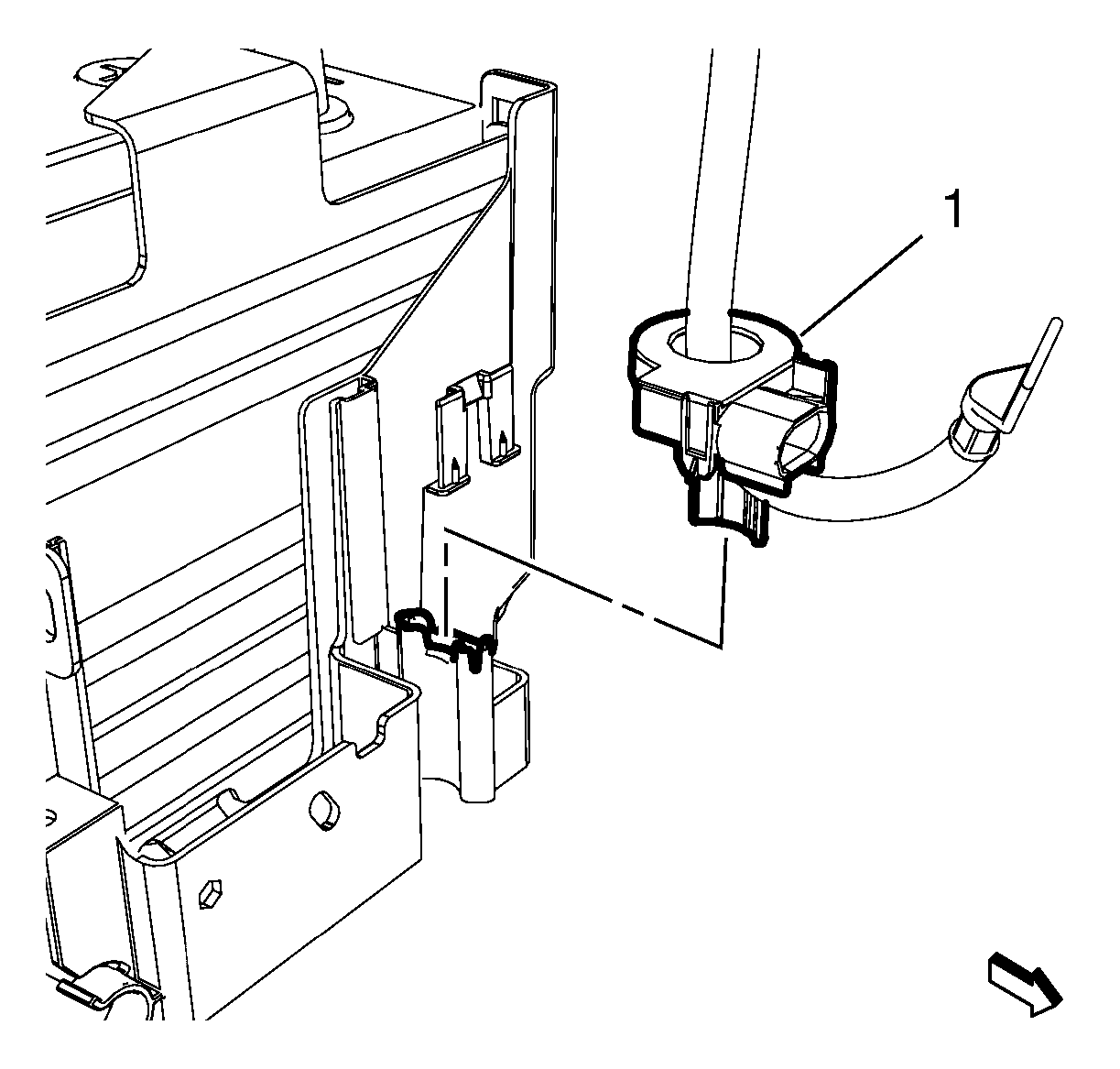

    3. Fig 2: Battery Current Sensor And Battery Tray
    GM2694013Courtesy of GENERAL MOTORS COMPANY
  3. Clip in the battery current sensor (1) to the battery tray.
  4. If equipped, clip in the radiator surge tank engine hose to the battery tray.
  5. Install battery. Refer to Battery Replacement .
  6. Clip in all wiring harness at the battery tray.
  7. Clip in the engine control module bracket to the battery tray.
  8. Close the hood.
