Windshield Washer Pump Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

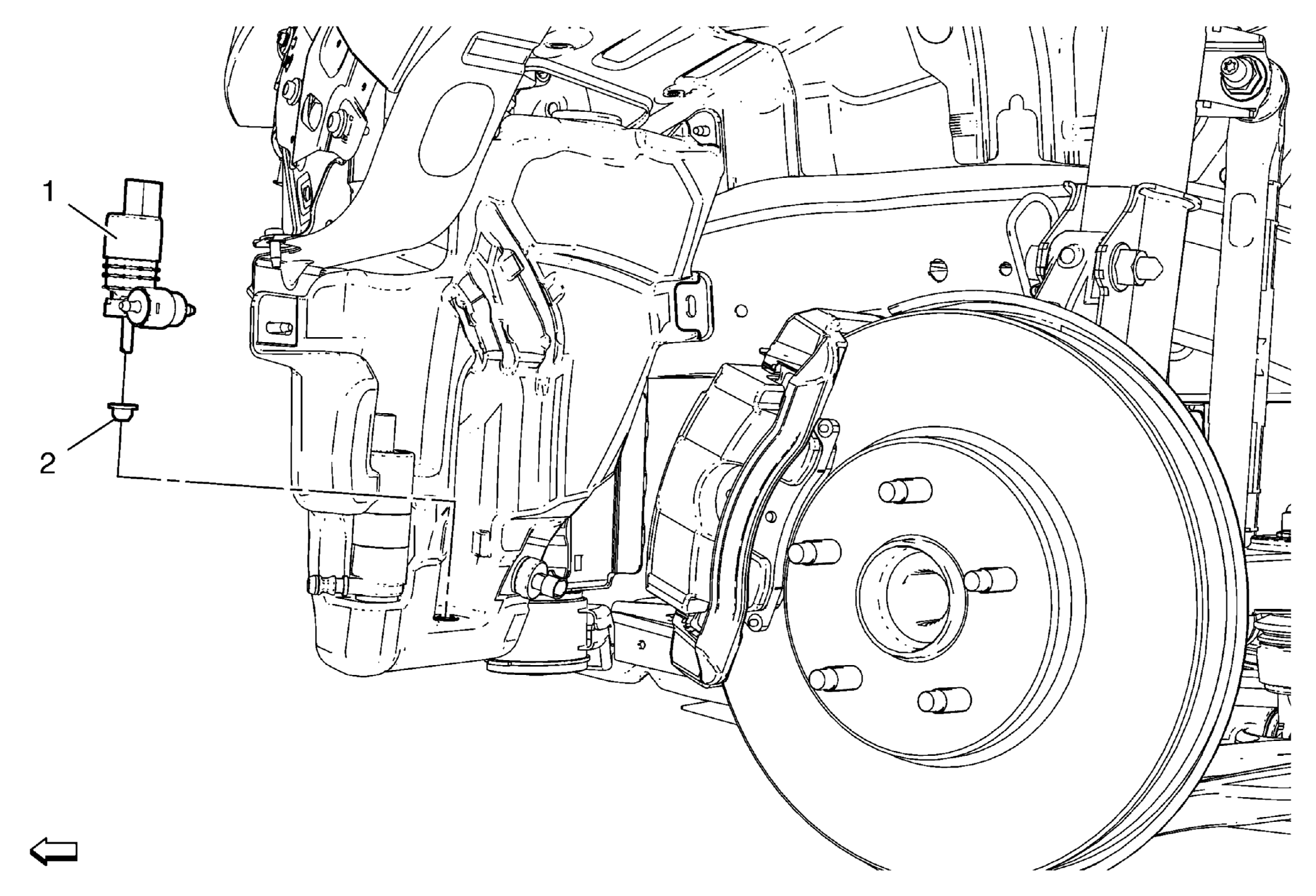

Fig 1: Windshield Washer Pump

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
1	Windshield Washer Pump Seal
2	Windshield Washer Pump Procedure Disconnect windshield washer pump hose Disconnect electrical connector.

Callout

Component Name

Preliminary Procedure
Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .

Windshield Washer Pump Seal

Windshield Washer Pump

Procedure

Disconnect windshield washer pump hose
Disconnect electrical connector.
