Windshield Wiper Motor Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

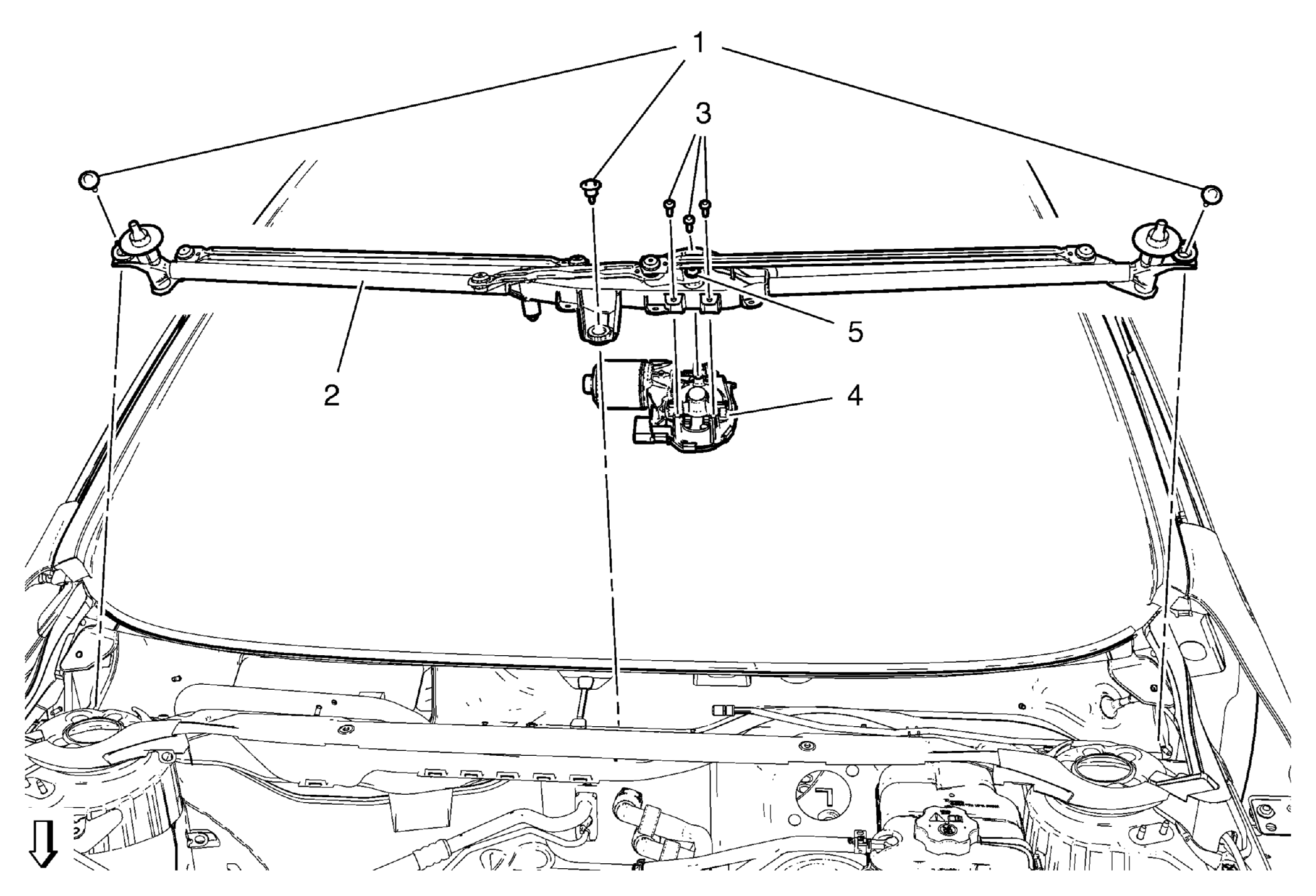

Fig 1: Windshield Wiper Motor, Transmission & Mounting Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement . Remove the dash upper extension panel opening cover. Refer to Dash Upper Extension Panel Opening Cover Replacement .
1	Windshield Wiper Transmission Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Windshield Wiper Transmission
3	Windshield Wiper Motor Bolt (Qty: 3) Tighten 10 N.m (89 lb in)
4	Windshield Wiper Motor
5	Windshield Wiper Motor Nut
