Object Detection Wiring Schematics: UD7

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

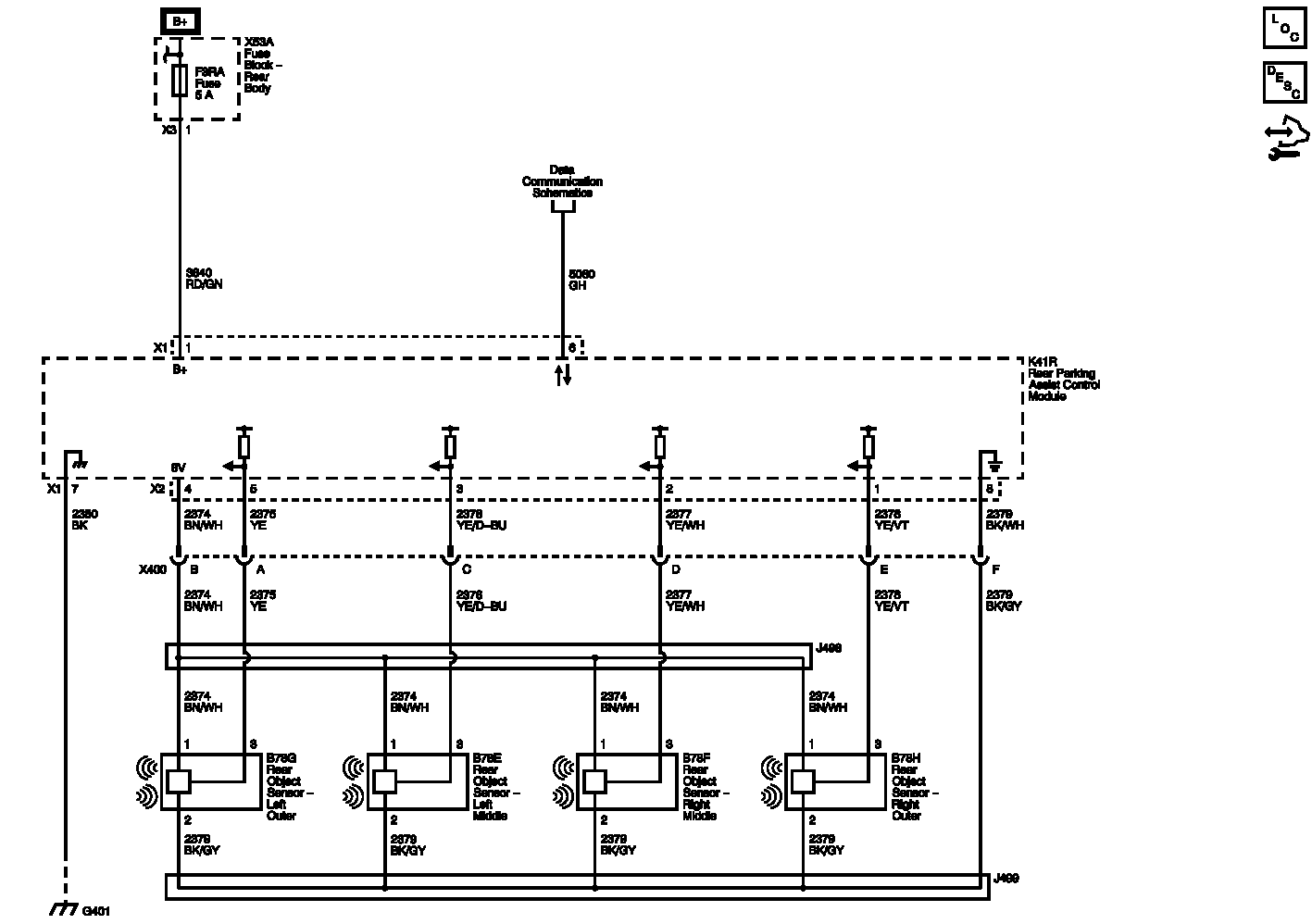

Fig 1: UD7 Wiring Schematic
GM2690509Courtesy of GENERAL MOTORS COMPANY
