Knock Sensor Replacement - Left Side

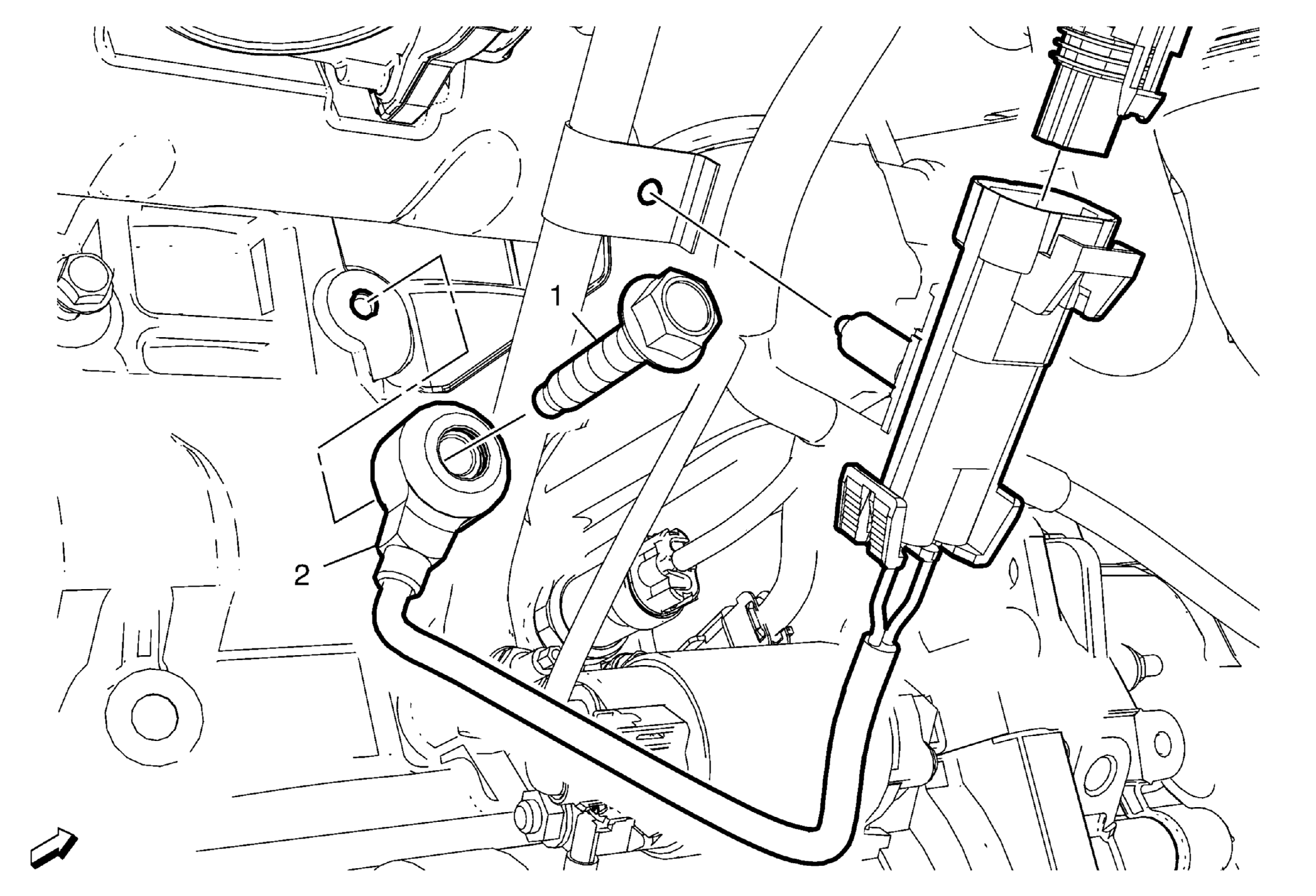

Fig 1: Knock Sensor - Left Side
GM2739133Courtesy of GENERAL MOTORS COMPANY
Knock Sensor Replacement - Left Side

Callout Component Name
Preliminary Procedure
Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
1 Knock Sensor Fastener
CAUTION:

Refer to Fastener Caution .


Procedure
  1. Clip out the electrical connector.
  2. Disconnect the electrical connector.

Tighten
25 N.m (18 lb ft)
2 Knock Sensor
