Radio Control Assembly Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

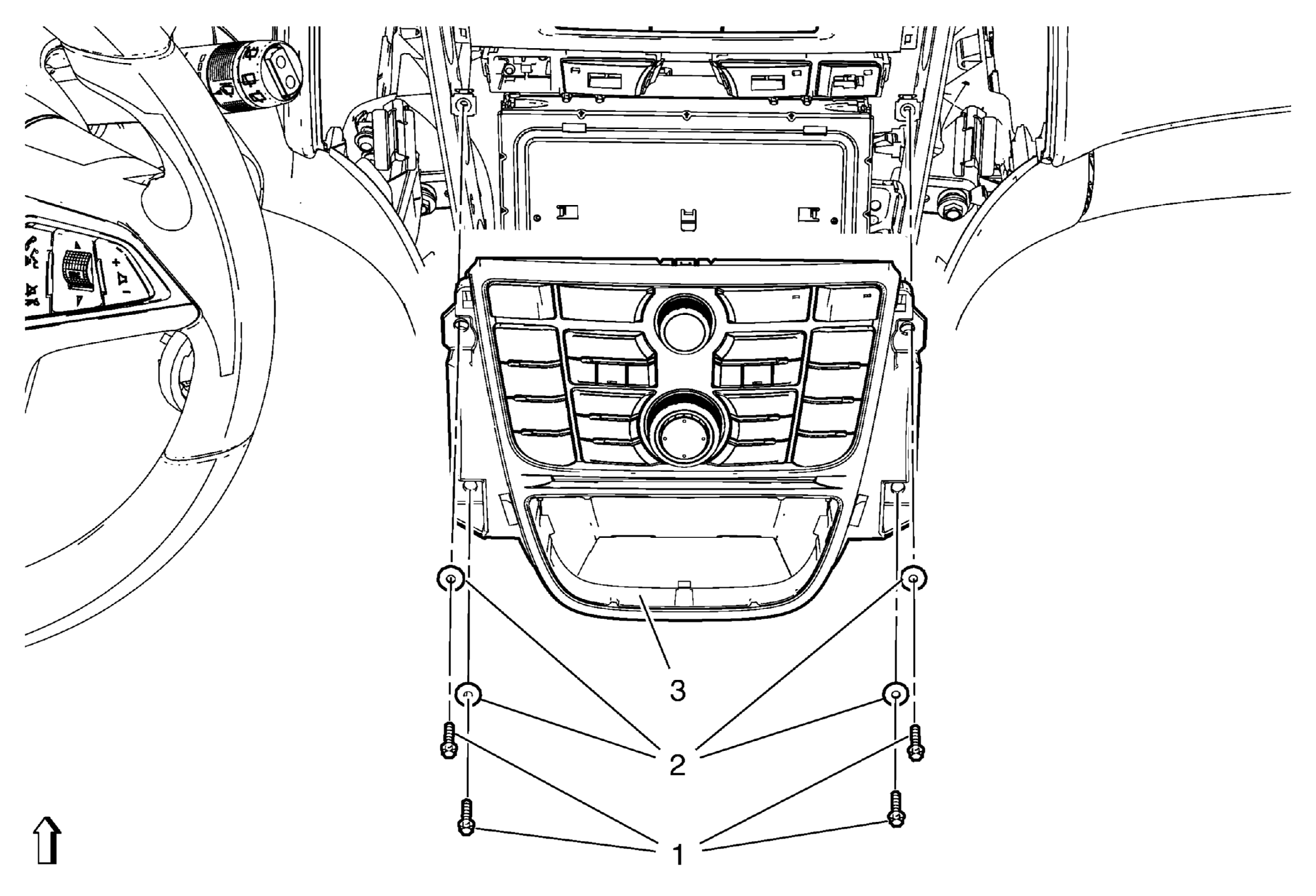

Fig 1: Radio Control Assembly & Bolts
GM2189509Courtesy of GENERAL MOTORS COMPANY
Radio Control Assembly Replacement

Callout Component Name

Preliminary Procedures

  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Remove instrument panel center trim panel. Refer to Instrument Panel Center Trim Panel Replacement .
1 Radio Control Module Bolts (Qty: 4)
CAUTION:

Refer to Fastener Caution .

NOTE:

To access the upper bolts, open the access doors on instrument panel center air outlet deflector housing.

2 Radio Control Module Washer (Qty: 4)
3 Radio Control Module

Procedure

  1. Disconnect electrical components.
  2. Remove the heater and air conditioning control.
