Passive Entry (ATH with BTM)

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

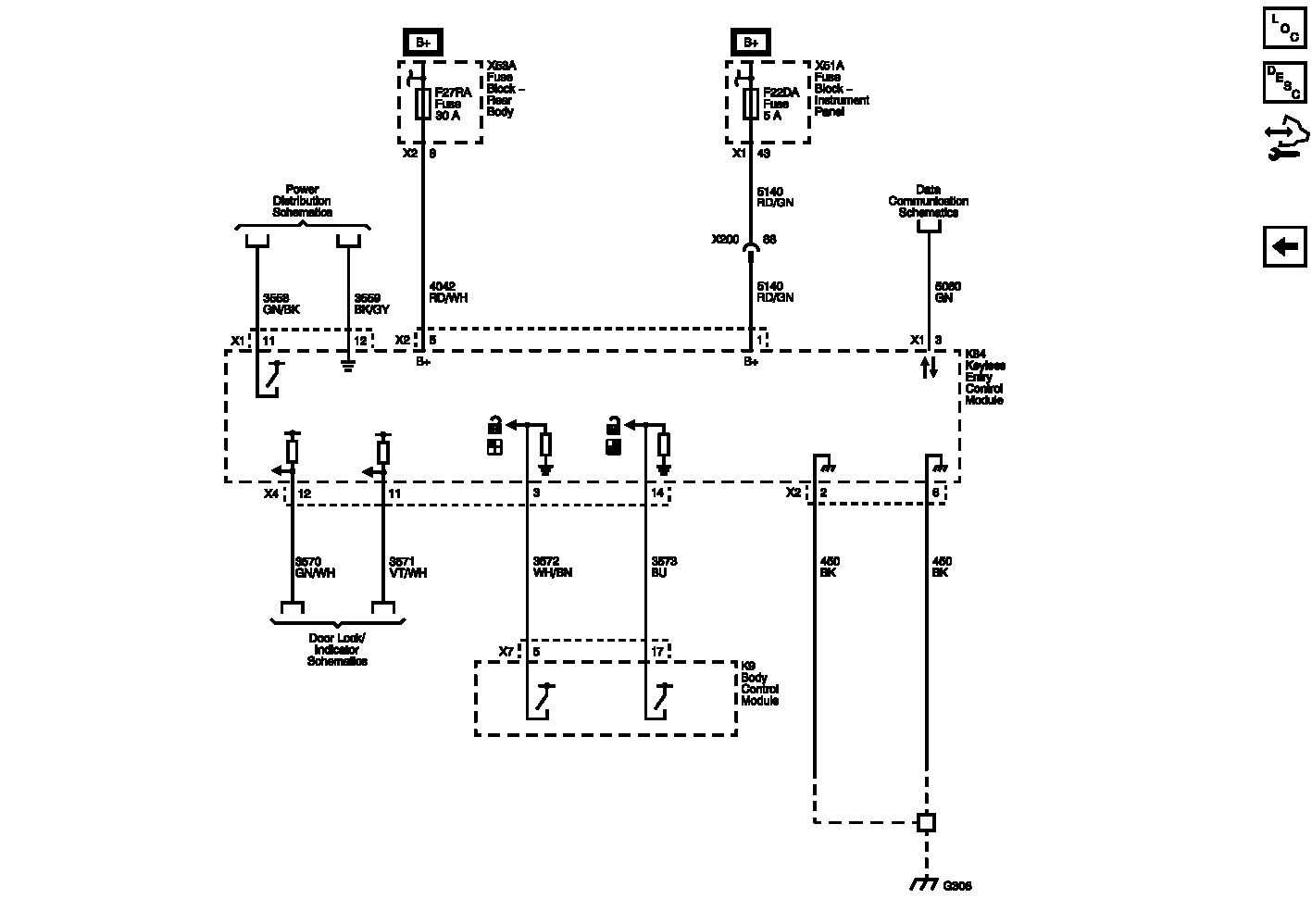

Fig 1: Passive Entry Wiring Schematic (ATH with BTM)
GM2690512Courtesy of GENERAL MOTORS COMPANY
