Passive Entry Power, Ground, Data Communications

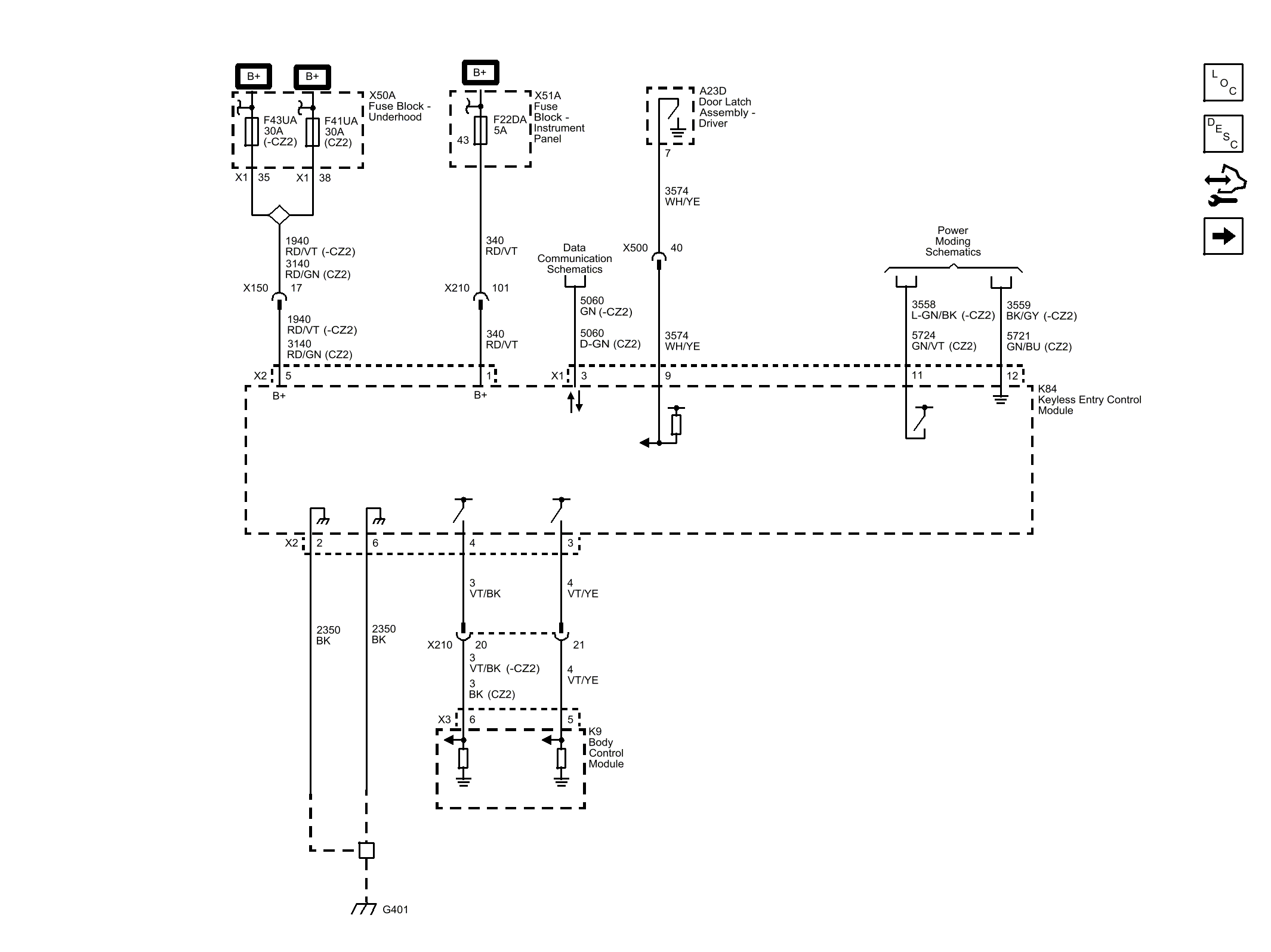

Fig 1: Passive Entry Power, Ground, Data Communications
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
